Name: 65W Retractable-Cable Charger, UK Plug, Single Colour
Brand: TGITION
SKU: TG65R-ACC

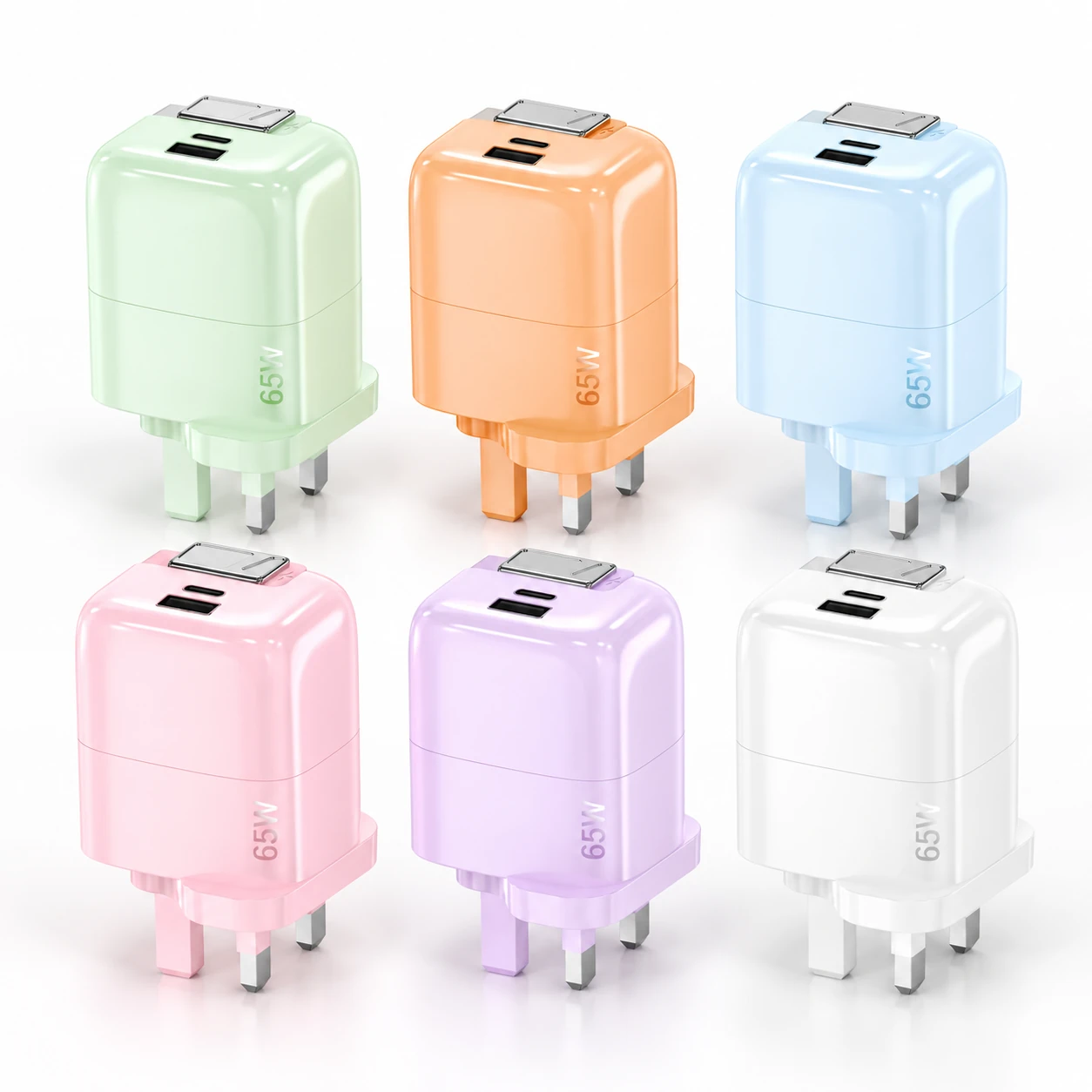

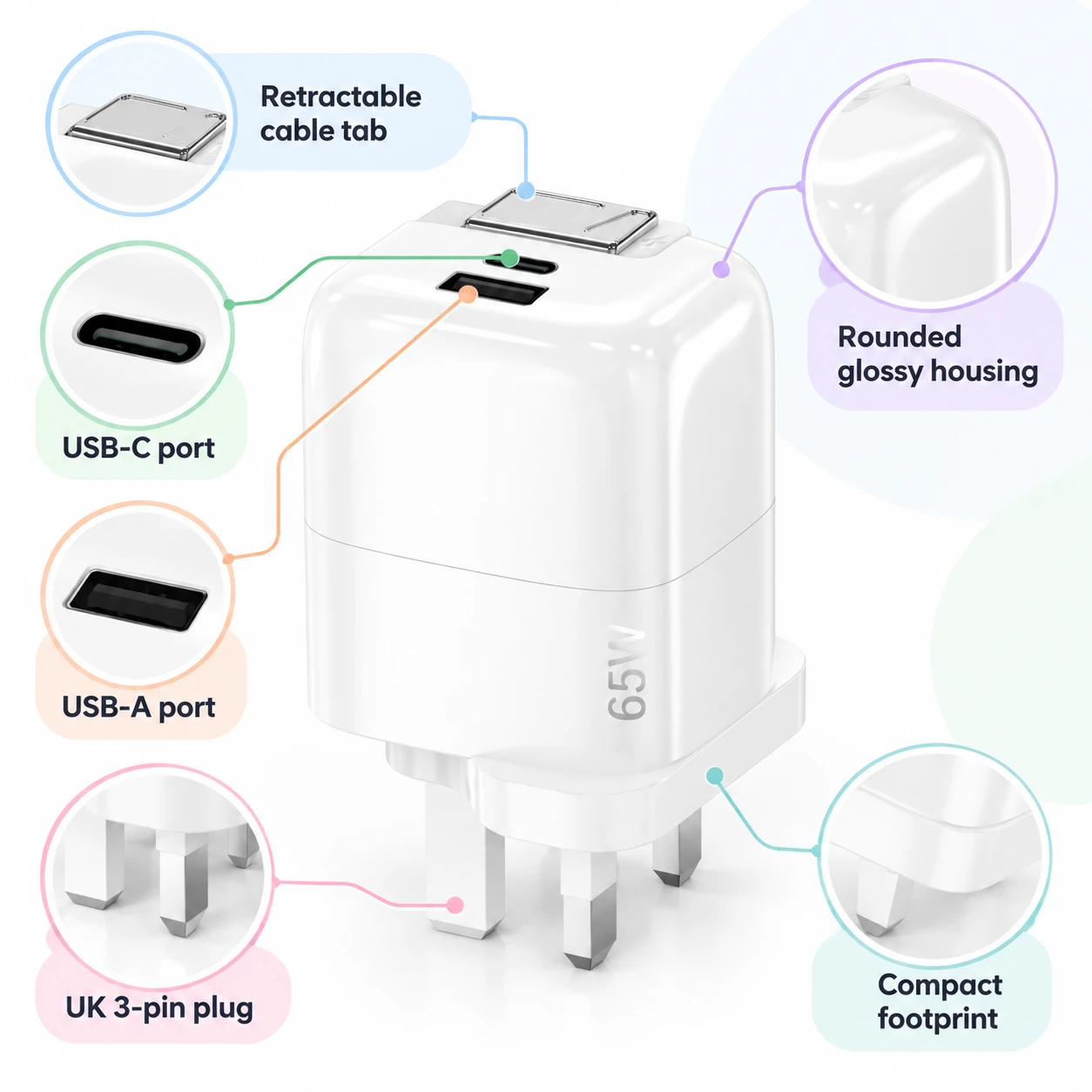

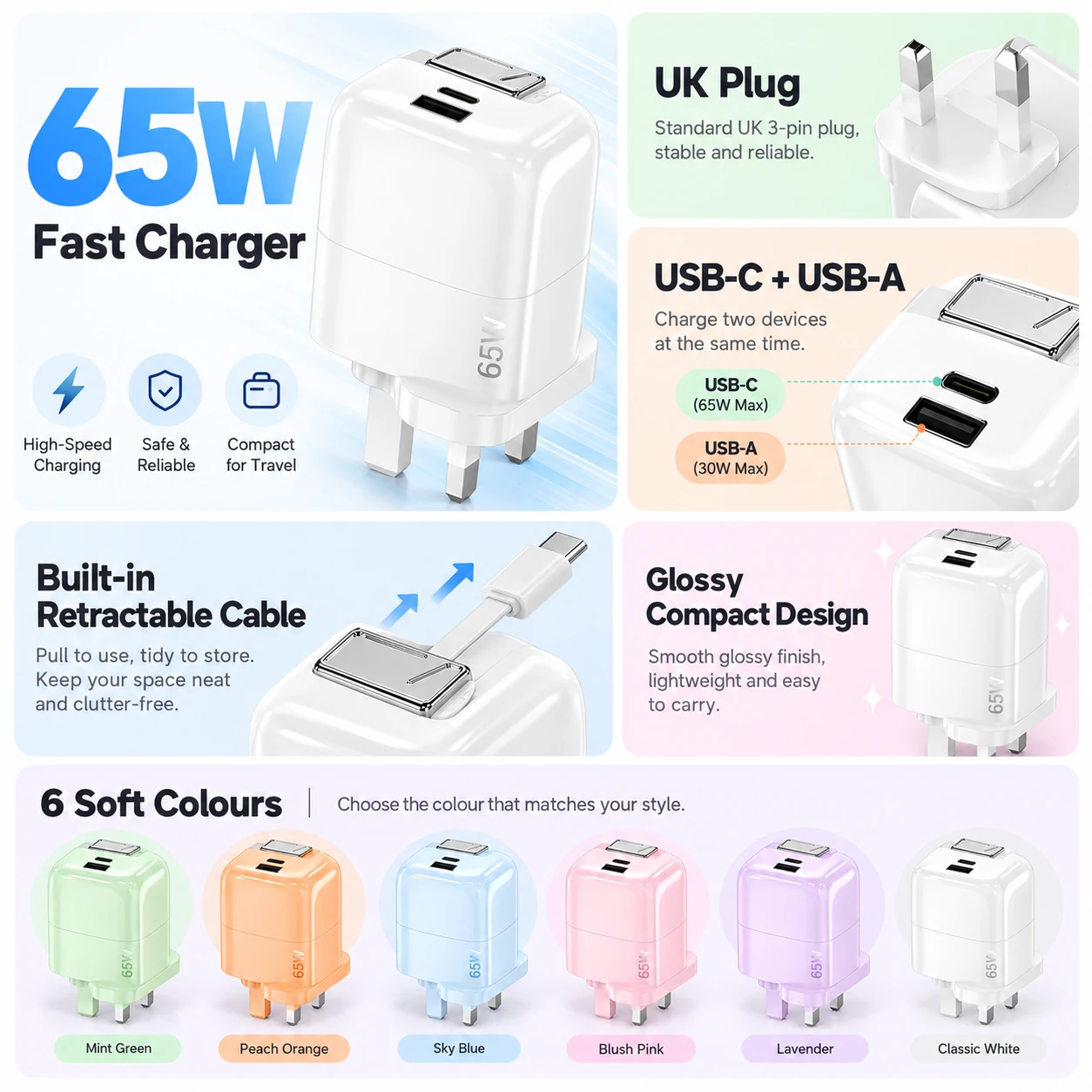

A 65 W wall charger with a retractable USB-C cable built into the housing, so the output lead travels with the unit instead of being lost or left behind. The body is moulded in a single colour for private-label programmes.

This page covers the UK plug variants. The shared electrical datasheet is document TGITION_TG65R-ACC Rev 1.0; port configuration, plug detail and the certifications held for this variant are still to be confirmed by the client and are marked below.

Retractable USB-C cable rated to the full 65 W (20 V / 3.25 A)
Wide-range 100–240 V AC input with a 90–264 V AC operating window
Standby power consumption of 0.30 W
Hiccup-mode short-circuit protection with automatic recovery

Input

Input	100–240 V AC, 50/60 Hz; operating range 90–264 V AC, 47–63 Hz; 1,500 mA max at nominal input and rated load

Output

Rated output	65 W (retractable USB-C cable: 5 V 3 A, 9 V 3 A, 12 V 3 A, 15 V 3 A, 20 V 3.25 A)
Output	5 V 3 A (15 W); 9 V 3 A (27 W); 12 V 3 A (36 W); 15 V 3 A (45 W); 20 V 3.25 A (65 W)
Ripple & noise	200 mVp-p maximum, 20 MHz bandwidth
Standby power	0.30 W maximum
Efficiency	Minimum average efficiency 81.39–88.00% across the rated outputs (ERP3 referenced)

Protection

Protections	Short circuit (hiccup mode, automatic recovery); over-current: ≤4.2 A at 5/9/12/15 V, ≤3.5 A at 15 V 2.5 A, ≤3.15 A at 20 V 2.25 A, ≤4.55 A at 20 V 3.25 A

Environmental

Operating conditions	Operating 0–25 °C at full load; storage −20 to 85 °C; 5–95% RH; up to 2,000 m

Test	Condition	Result / scope
Burn-in	burned in for 2 hours at 25 °C at full load	100% of units
Input cycling	input settings cycled through 90 / 115 / 230 / 264 V AC	100% of units
Drop	120 cm drop onto concrete across all six faces	Sampling

EN55035:2017 (EMS); EN55032 / EN61000-3-2 / EN61000-3-3 (EMI); surge 1 kV differential mode, Class II; ESD 8 kV air / 4 kV contact; hi-pot 3200 V AC / 5 mA / 60 s
