Name: 24W Wall-Mount Power Adapter, Japan Plug
Brand: TGITION
SKU: TG24001000-JP

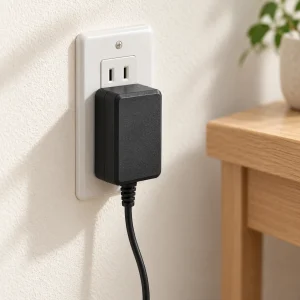

A 24 W wall-mount AC/DC adapter with a 24.0 V DC 1.0 A output on a Japan plug, for equipment that needs a higher rail than the 12 V class. Supplied with a 1.5 m UL2464 20AWG output cable and a flame-resistant 3.5 × 1.35 × 11.5 mm tuning-fork DC tip.

Japan market safety referenced to PSE and J61558-2-16
Ripple and noise held to 150 mVp-p, tighter than the 12 V class
No-load input power below 0.1 W at 115 V
Supplied with RoHS, REACH and WEEE documentation

General

Product type	Wall-mount switching AC/DC power adapter

Input

Input	100–240 V AC, 50/60 Hz; operating range 90–264 V AC, 47–63 Hz; 600 mA max.

Output

Rated output	24 W (24.0 V DC × 1.0 A)
Output	24.0 V DC typical (22.8 V min / 25.2 V max at both 0 A and 1.0 A load), 0.0–1.0 A; ripple & noise 150 mVp-p
Output voltage	22.8 V DC min / 24.0 V DC typical / 25.2 V DC max, at both 0 A and 1.0 A
Output current	0.0–1.0 A
Ripple & noise	150 mVp-p, 20 MHz bandwidth
No-load input power	<0.1 W at 115 V AC / 60 Hz
Hold-up time	8 ms minimum at 115 V AC / 60 Hz; 20 ms minimum at 230 V AC / 50 Hz
Efficiency	Average active efficiency >86.204% at 115 V AC / 60 Hz

Protection

Protections	Over-voltage, over-current (output current limiting), continuous short-circuit

Environmental

Operating conditions	0–40 °C, 10–90% RH, up to 2,000 m; natural convection cooling

Physical

Housing dimensions	Housing L 58 × W 37 × H 25 mm (tolerance ±2 mm)

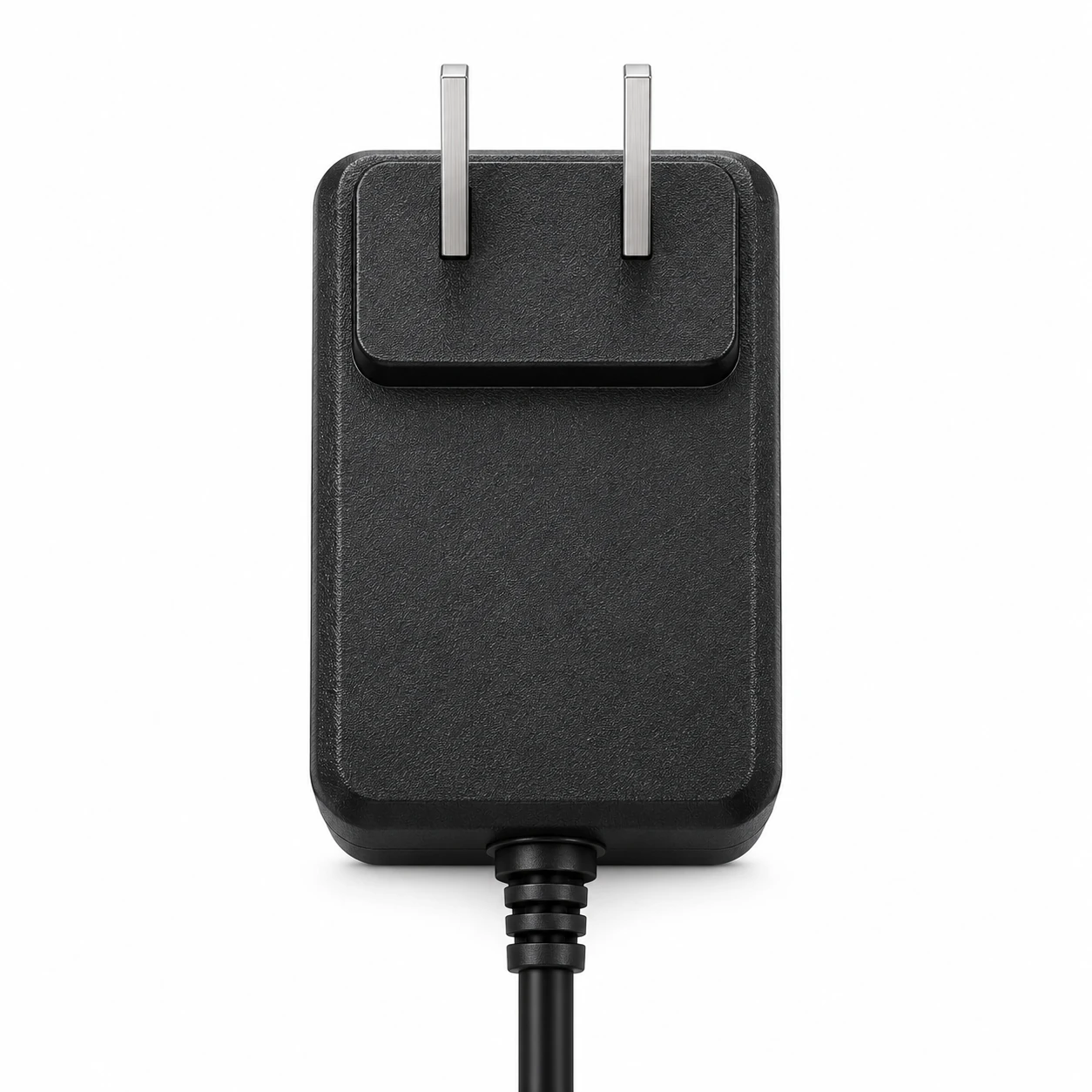

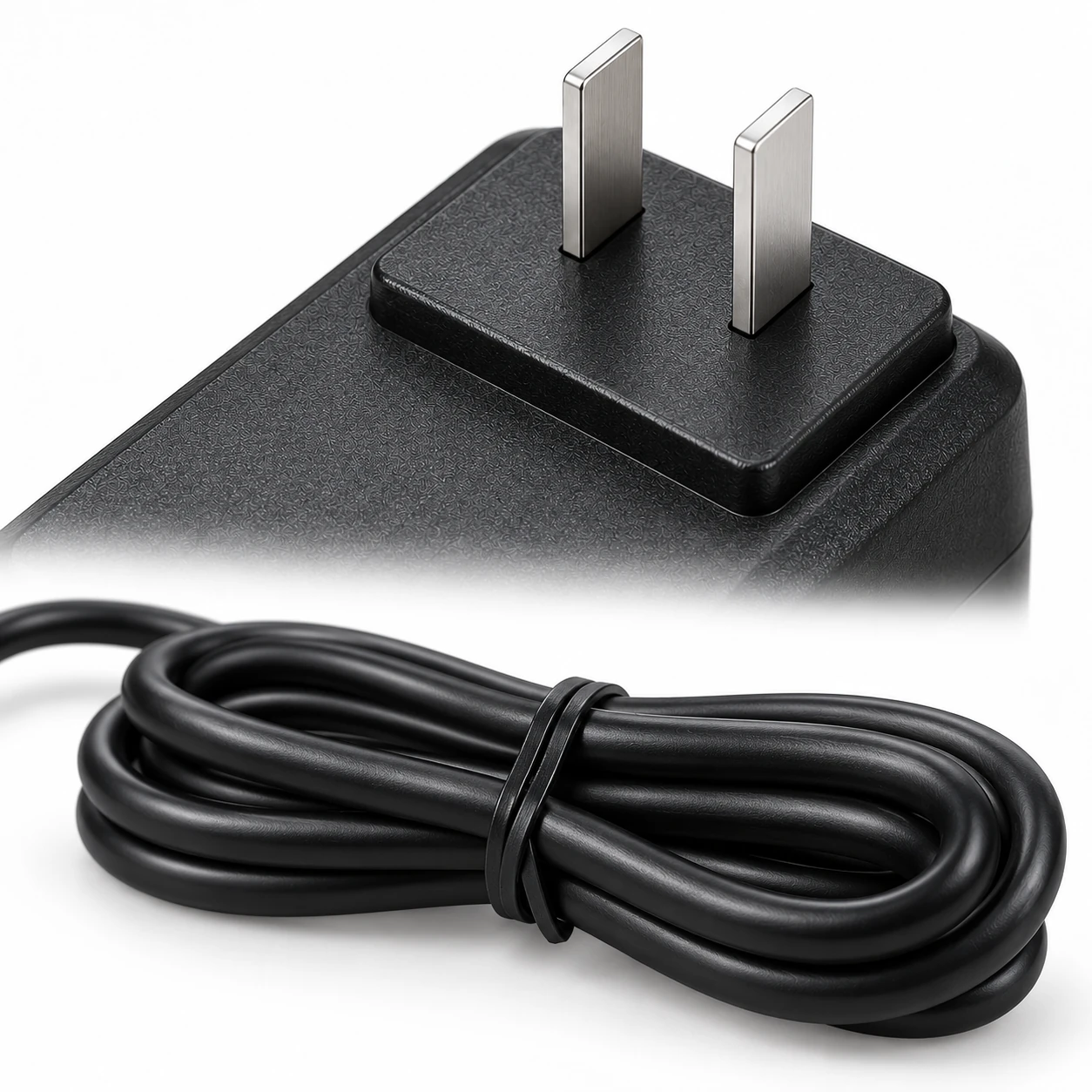

Plug / connector types	Japan plug; output cable UL2464 20AWG × 1.5 m; straight tuning-fork DC tip 3.5 × 1.35 × 11.5 mm, flame-resistant

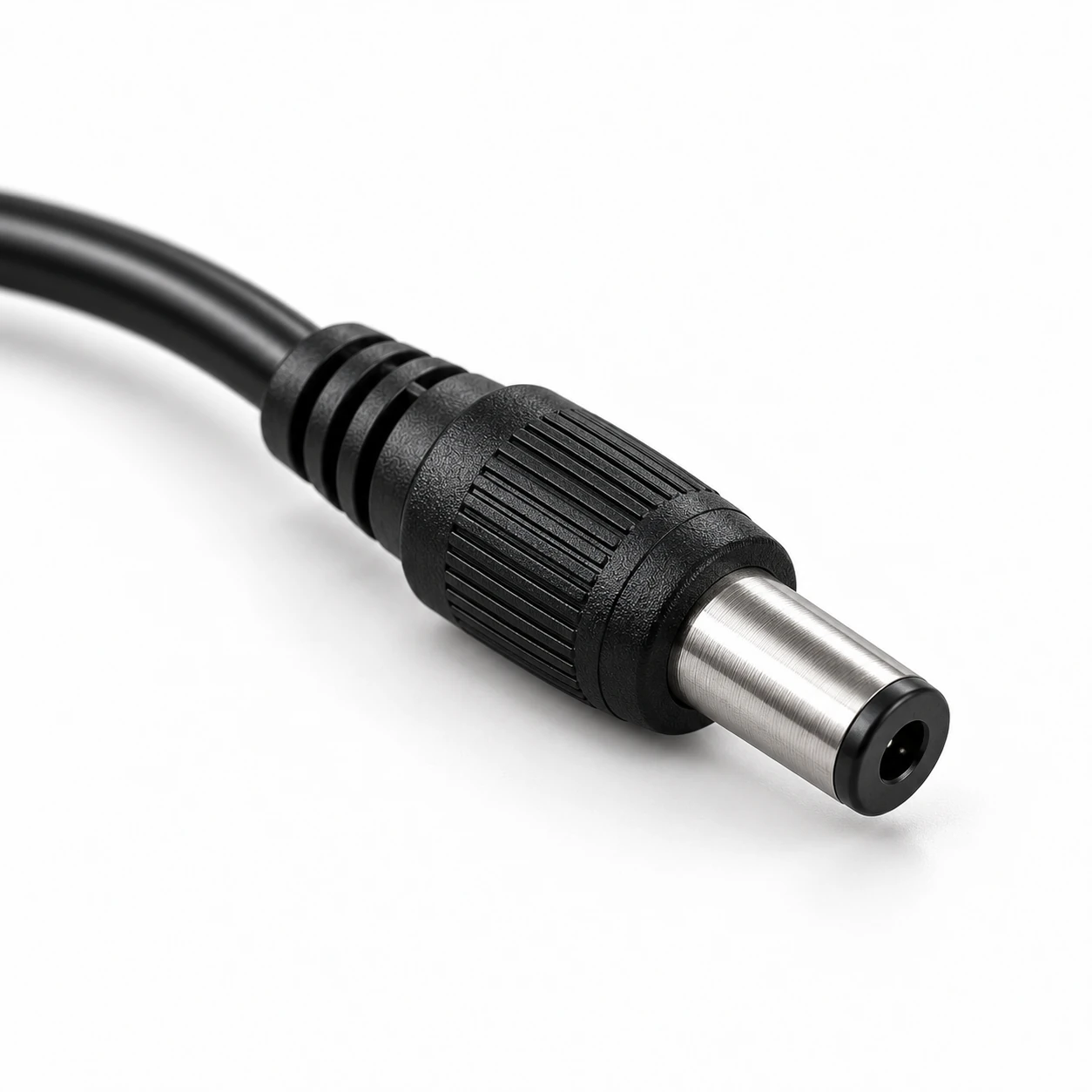

DC connector	Straight tuning-fork tip, 3.5 × 1.35 × 11.5 mm, flame-resistant
Output cable	UL2464 × 20AWG × 1.5 m

Test	Condition	Result / scope
Burn-in	runs for a minimum of four hours at full load in a 35–40 °C ambient	100% of units
Drop	1.0 m drop test onto concrete across three faces	Sampling
MTBF	30,000 hours at 25 °C (MIL-HDBK-217F)
Component derating	semiconductor junction temperatures are checked against their maximum thermal ratings

Japan safety standard PSE, J61558-2-16; EN 55014 radiated and conducted emissions; IEC 61000-4-2 ESD (8 kV air / 4 kV contact); EN 61000-4-5 surge (1 kV line-to-line); dielectric strength 3000 V AC / 5 mA / 1 min
