Name: 45W USB-C + USB-A PD Wall Charger, EU Plug
Brand: TGITION
SKU: TG45AC-EU

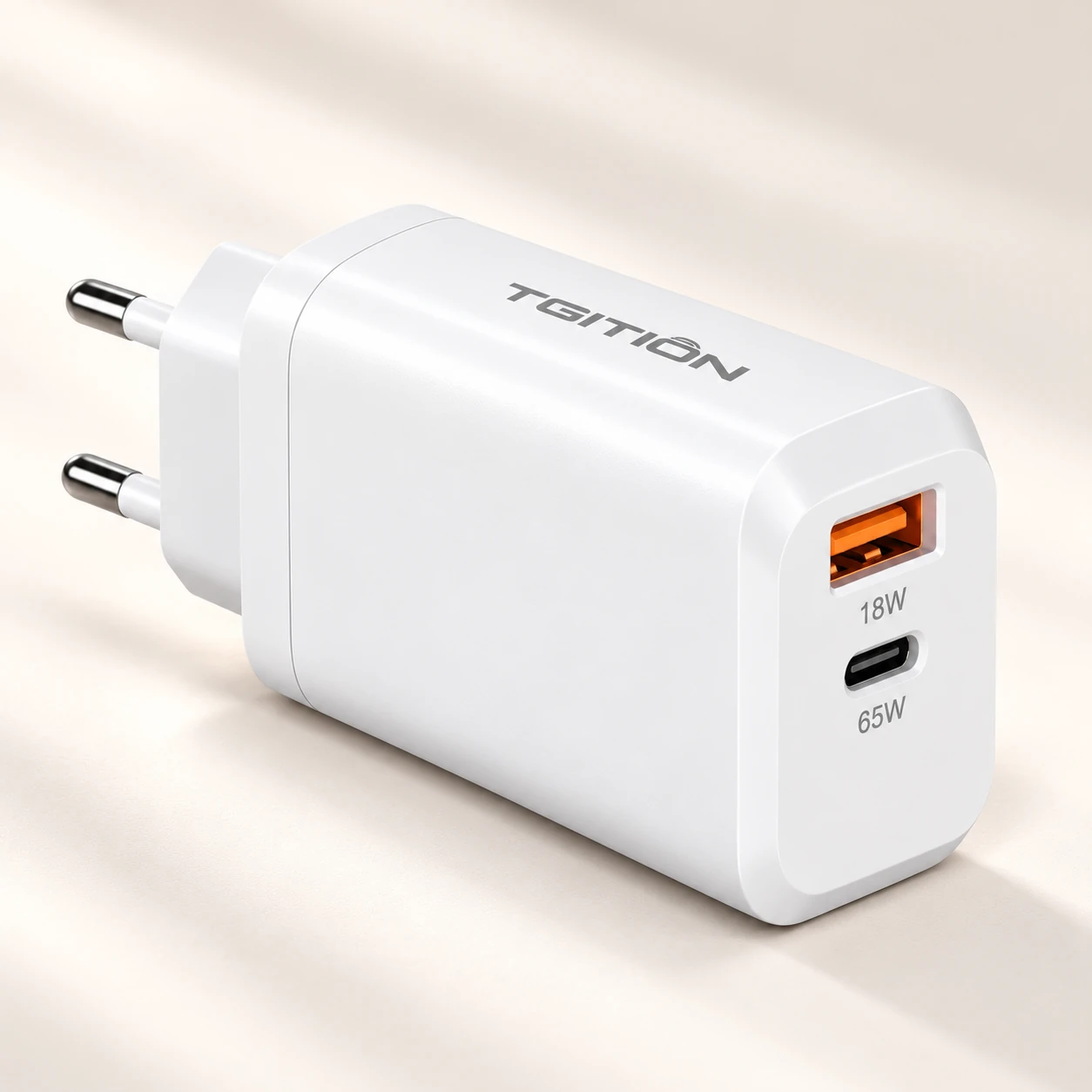

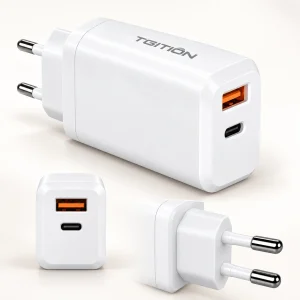

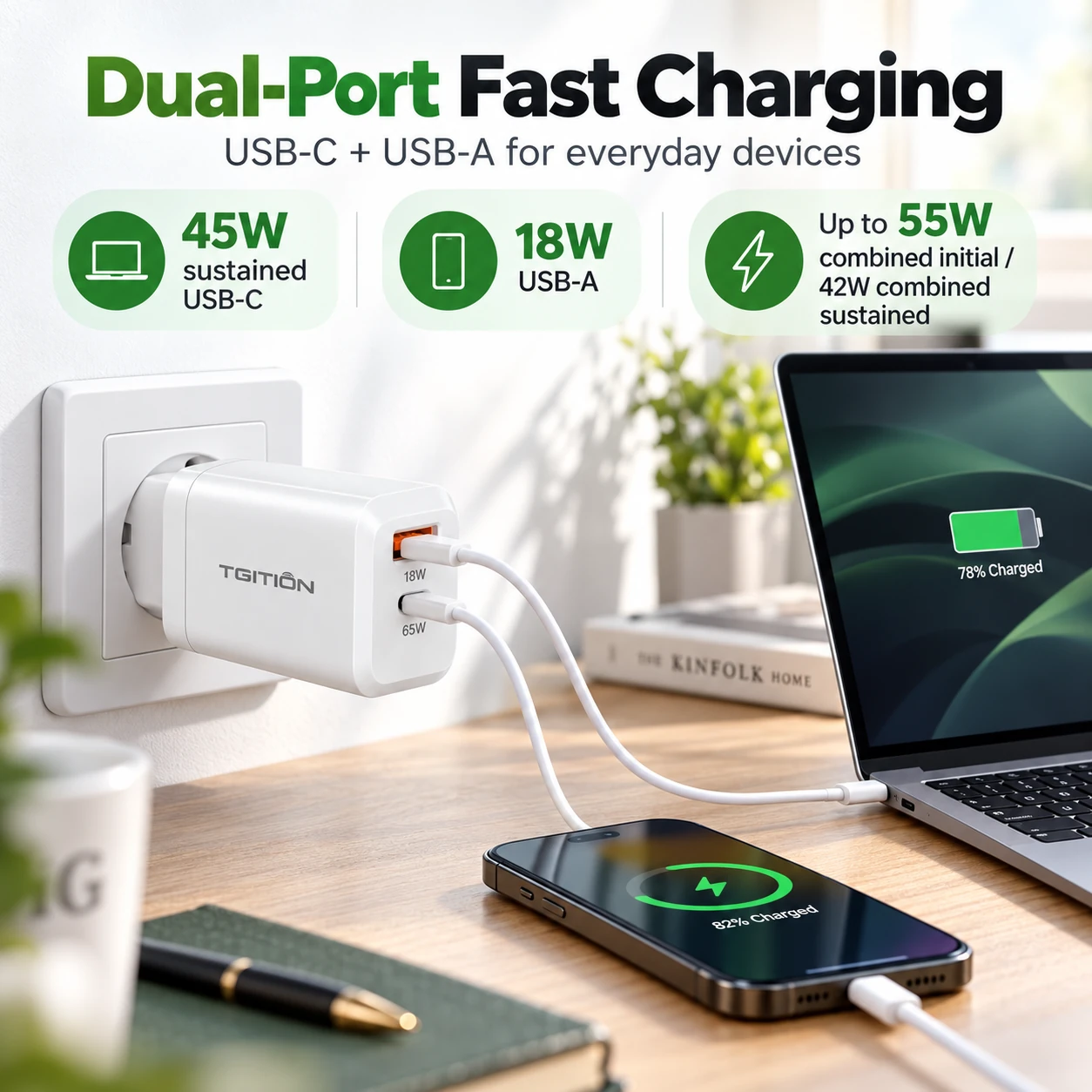

A 45 W USB-C PD wall charger with a second USB-A port on an integrated two-pin EU plug. The USB-C port runs up to 65 W for approximately 13 minutes and then settles to 45 W (20 V × 2.25 A); on its own the USB-A port is rated 18 W.

Output ripple is held to ≤250 mVp-p across the 5 V, 9 V, 12 V, 15 V and 20 V profiles, no-load draw is ≤0.2 W at 115 and 230 V AC, and the charger carries overcurrent, overvoltage and short-circuit protection with automatic recovery. An E-Marker cable is required for USB-C current above 3 A.

USB-C PD output up to 65 W for about 13 minutes, then 45 W sustained
Second USB-A port rated 18 W on its own
No-load draw of 0.2 W or less at 115 and 230 V AC
E-Marker cable required above 3 A on USB-C

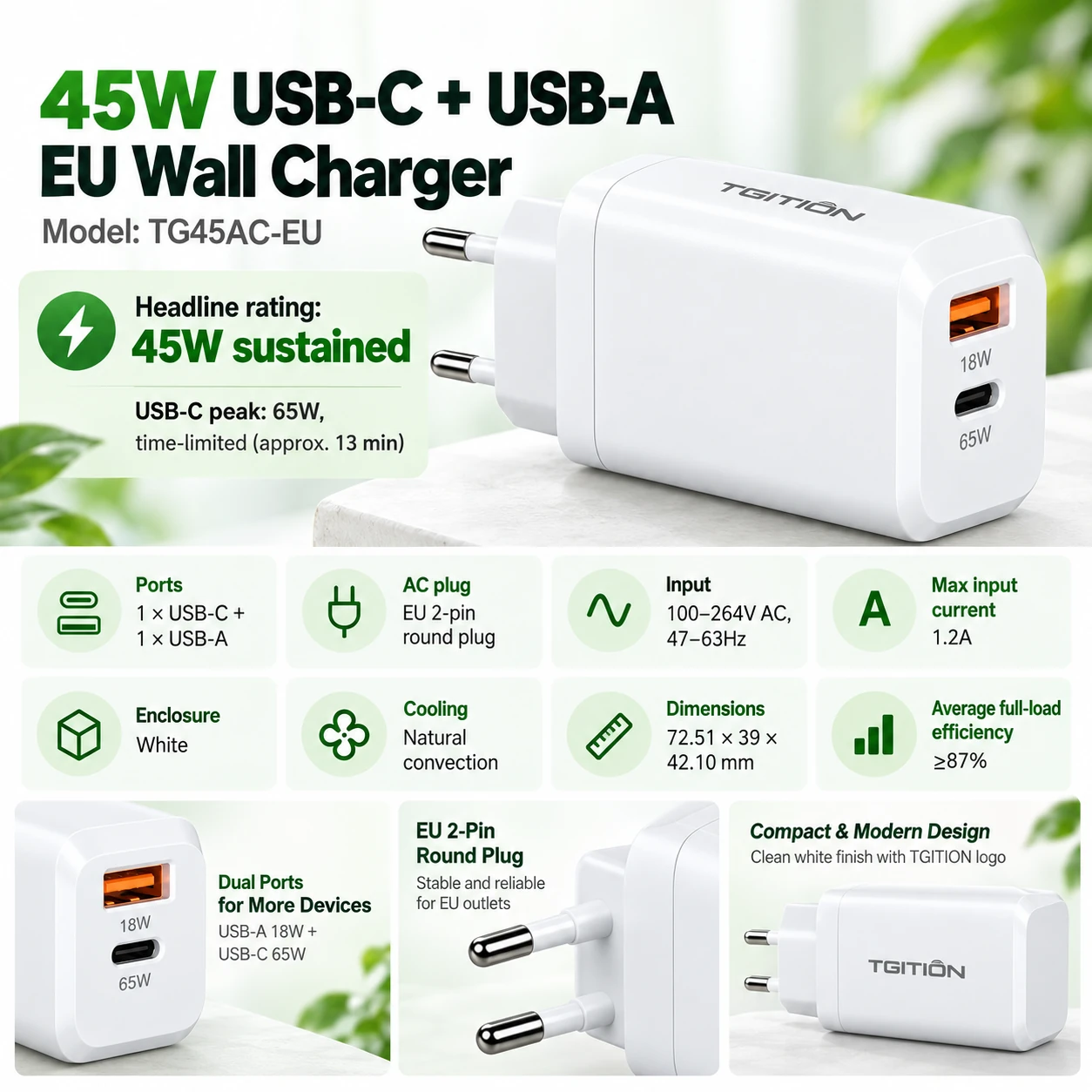

General

Product type	USB-C + USB-A PD wall charger

Input

Input	100–264 V AC, 47–63 Hz; nominal 110–240 V AC, rated 50/60 Hz; 1.2 A max

Output

Rated output	45 W sustained on USB-C (20 V DC × 2.25 A); 65 W for approximately 13 minutes, then 45 W

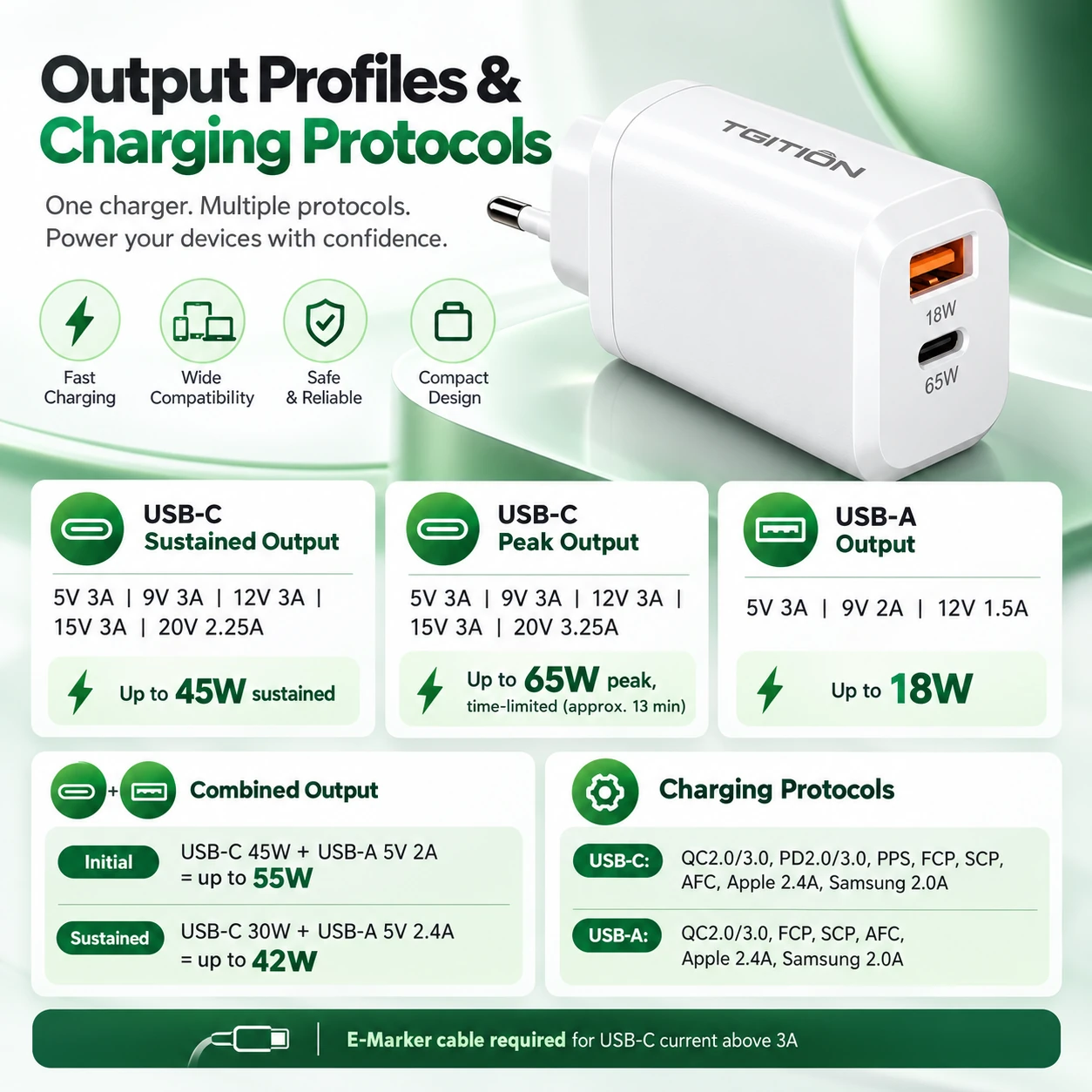

Output	USB-C sustained 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 2.25 A (45 W); USB-C initial 20 V 3.25 A (65 W, time-limited); USB-A 5 V 3 A / 9 V 2 A / 12 V 1.5 A (18 W)
Ripple & noise	≤250 mVp-p at 25 °C for the 5 V, 9 V, 12 V, 15 V and 20 V outputs
No-load input power	≤0.2 W at 115 and 230 V AC
Hold-up time	≥5 ms at 100 V AC / 60 Hz and 220 V AC / 50 Hz, full load
Efficiency	Average full-load efficiency ≥87% (specified)

Protection

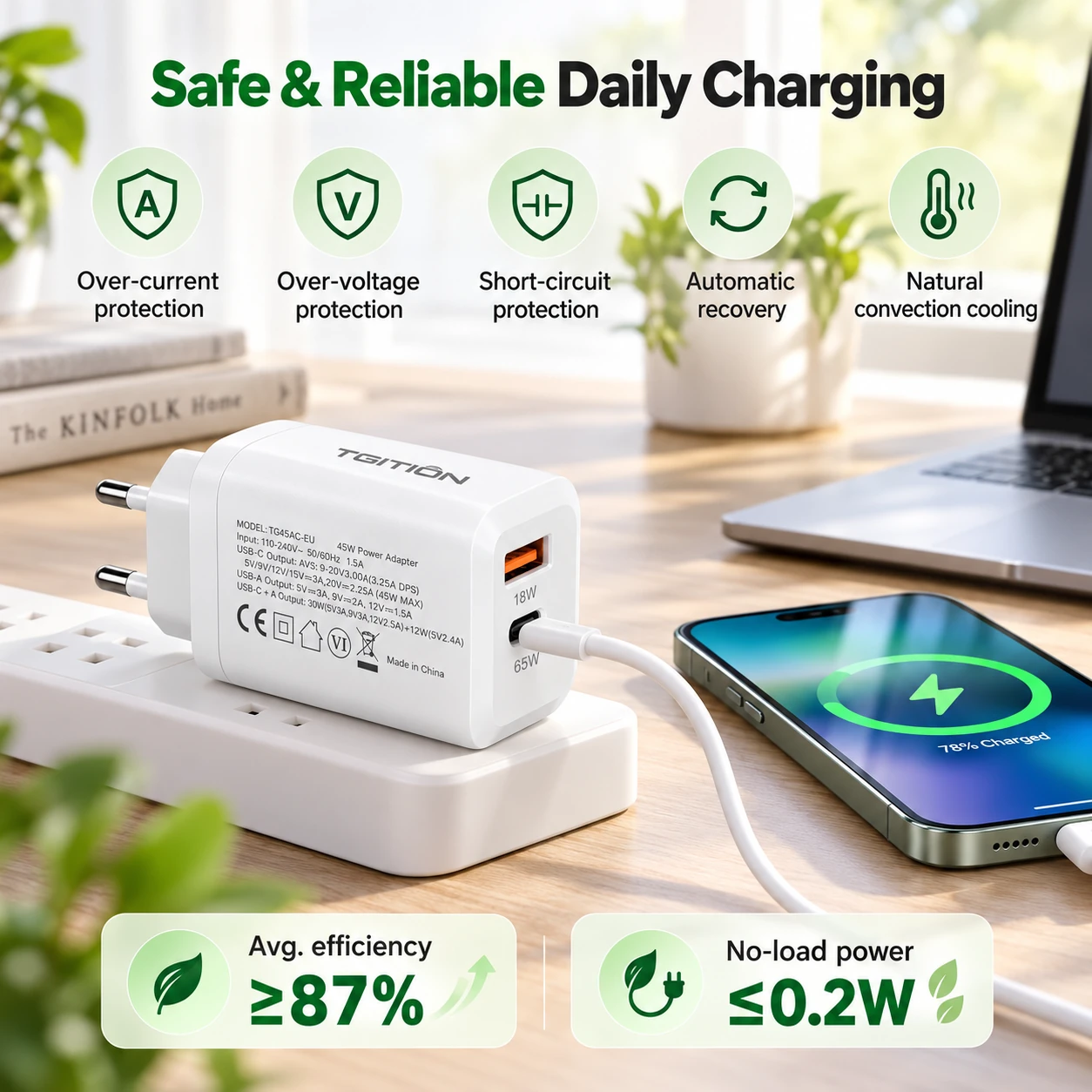

Protections	Overcurrent, overvoltage and short-circuit protection with automatic recovery

Environmental

Operating conditions	−20 to +35 °C operating; 5–90% RH non-condensing; below 2,000 m
Storage conditions	−25 to +75 °C; 5–95% RH non-condensing
Cooling	Natural convection

Physical

Housing dimensions	72.51 ± 0.2 × 39 ± 0.2 × 42.10 ± 0.2 mm (L × W × H)
Colours	White

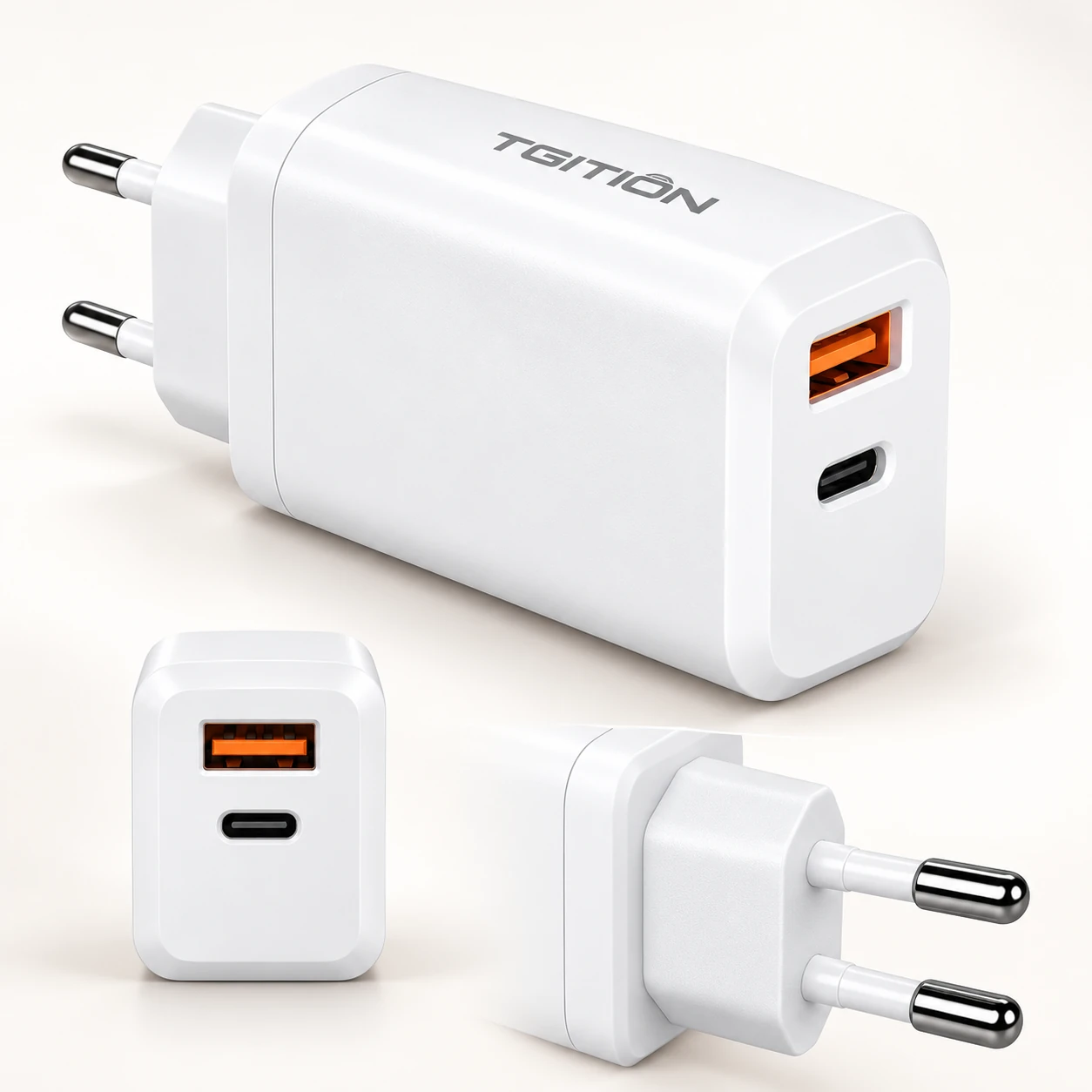

Plug / connector types	Integrated EU two-pin round plug; 1 × USB-C + 1 × USB-A

Test	Condition	Result / scope
Burn-in	2 h at 25 °C, rated input and full output load
Drop	1.0 m onto concrete or marble, six faces, once each
MTBF	30,000 hours at 25 °C, full load and rated input

Safety standard reference IEC 62368 / GB 4943-2022 (cited in the supplied specification); EMC references EN 55032 / CISPR 32 / FCC Part 15B / GB 9254; EFT ±1 kV power line, surge ±2 kV common mode / ±1 kV differential mode, ESD ±8 kV air / ±4 kV contact, all criterion B; dielectric strength 3.0 kV AC for 60 s, < 5 mA; leakage current ≤0.25 mA at 220 V AC / 50 Hz; insulation resistance ≥100 MΩ at 500 V DC
