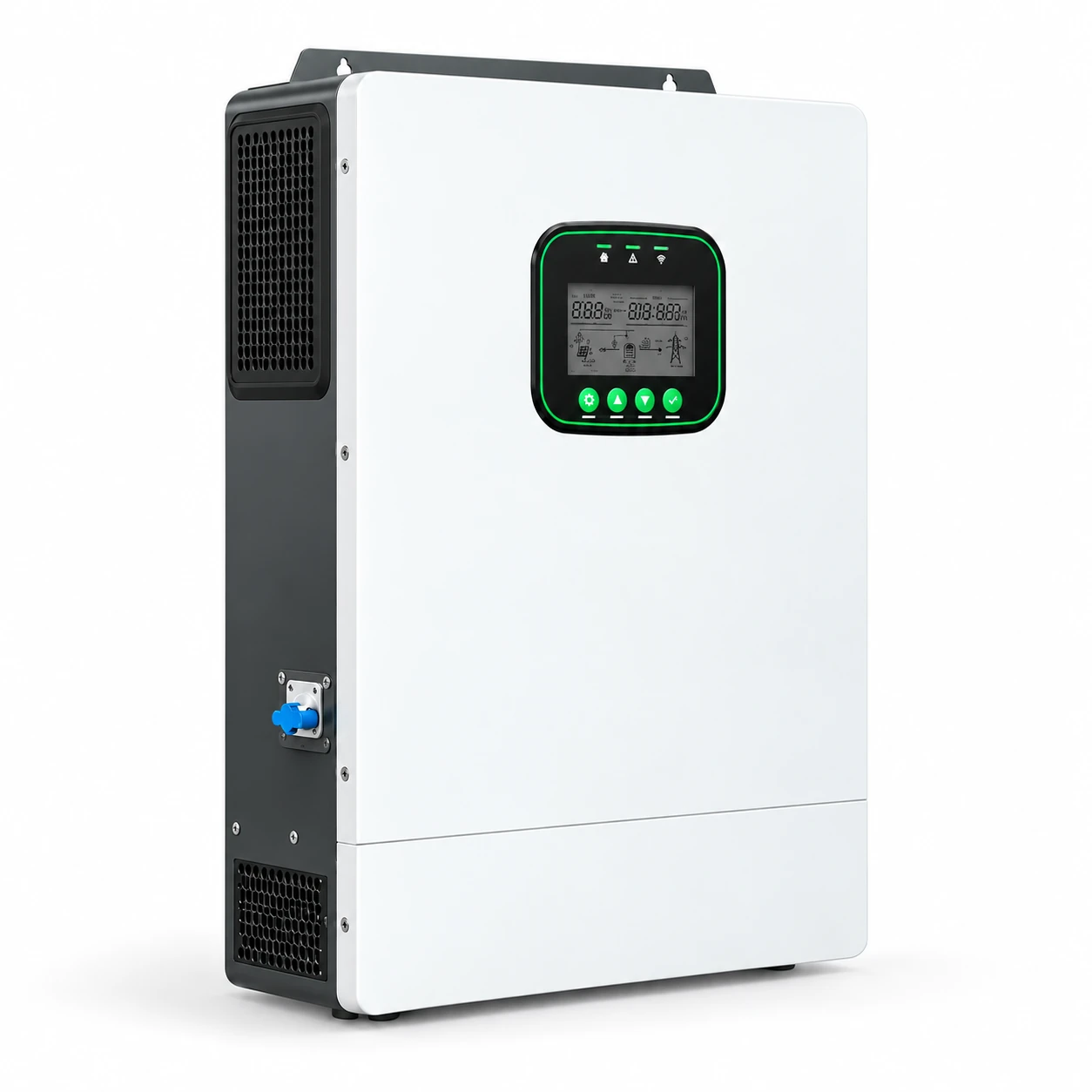

Name: 12kW Single-Phase Hybrid Storage Inverter
Brand: TGITION
SKU: TG12000SP-EU

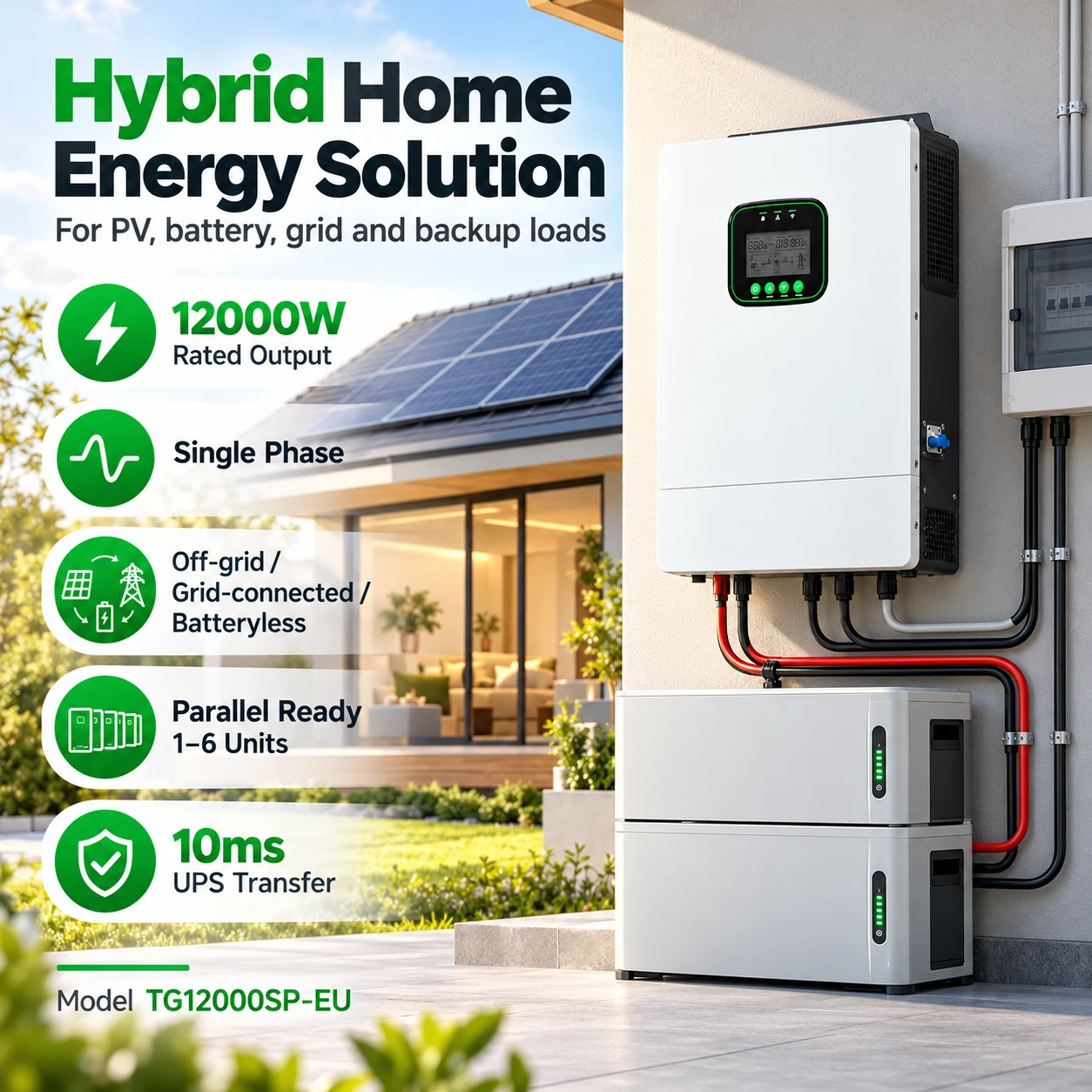

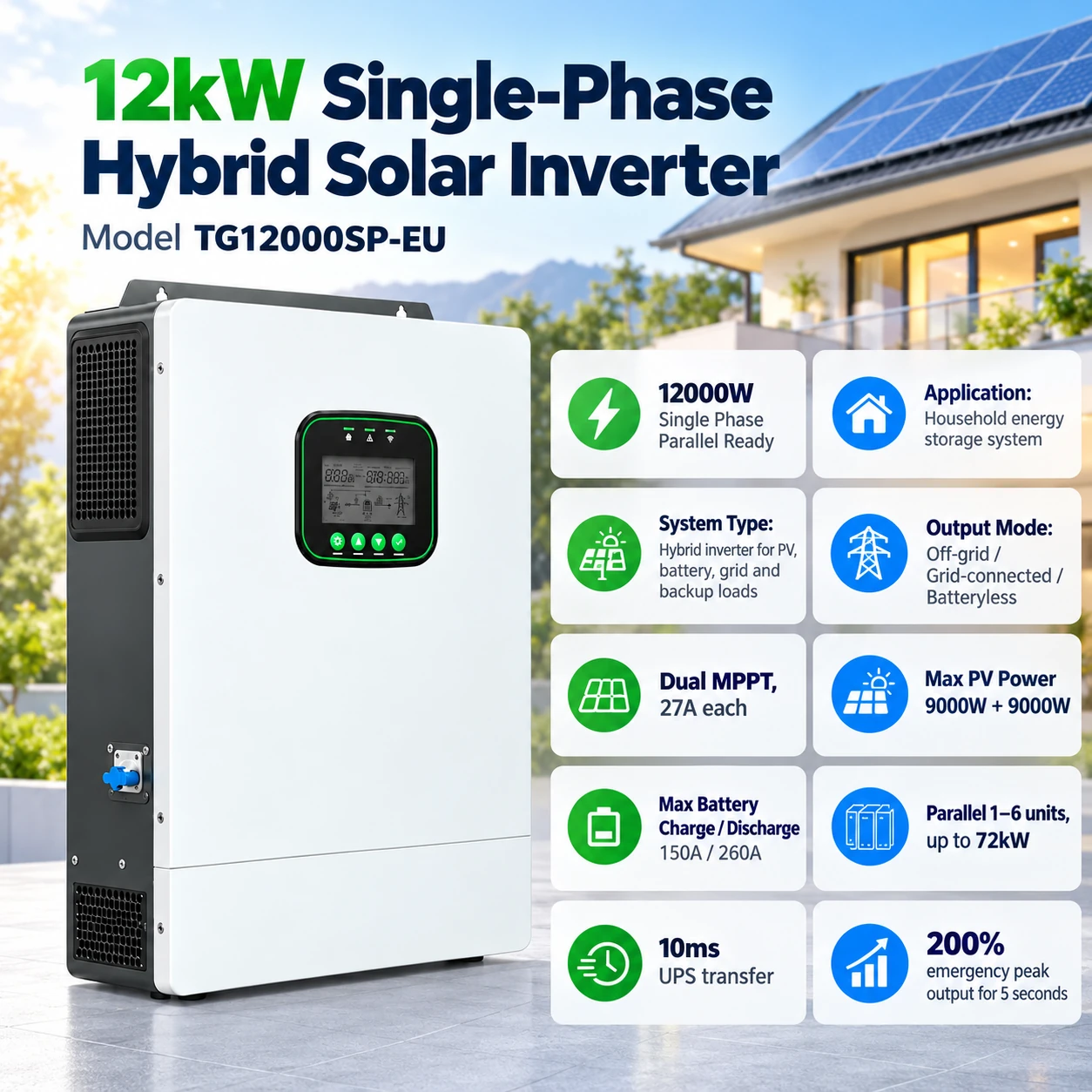

A 12 kW single-phase hybrid inverter for a household energy storage system, with two MPPT trackers taking up to 9,000 W + 9,000 W of photovoltaic input and a 51.2 V battery. Up to six units parallel into a 72 kW group, and it runs off-grid, grid-connected or without a battery.

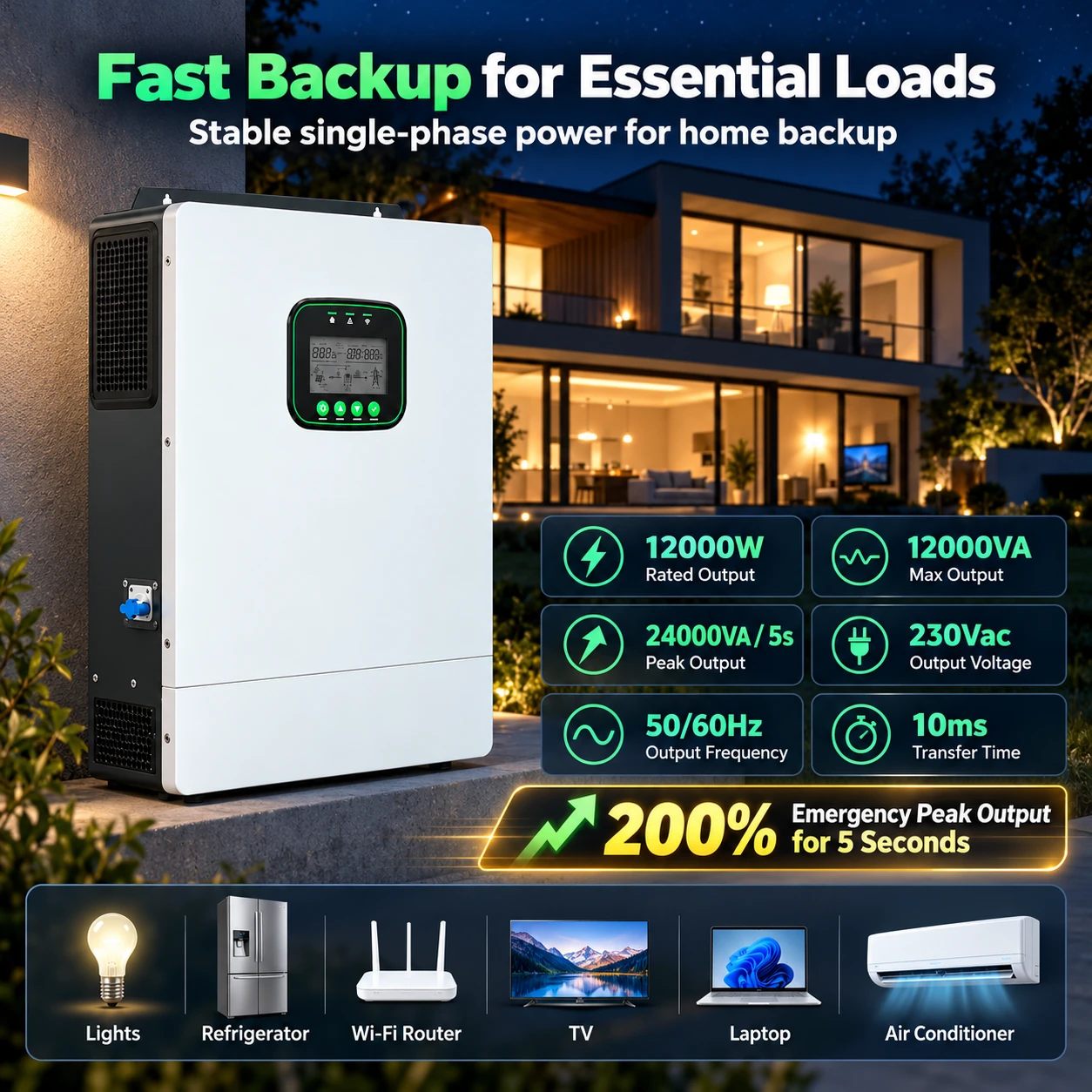

200% emergency peak output for 5 s (24,000 VA)
Dual MPPT, 27 A each, up to 18 kW of PV
10 ms UPS transfer for backup loads
CT anti-backflow with zero-feed-in protection

General

Battery	51.2 Vdc rated; 40–60 Vdc range; 44 V minimum start; lead-acid or lithium; 150 A charge / 260 A discharge
Parallel capability	1–6 units, up to 72 kW per group

Input

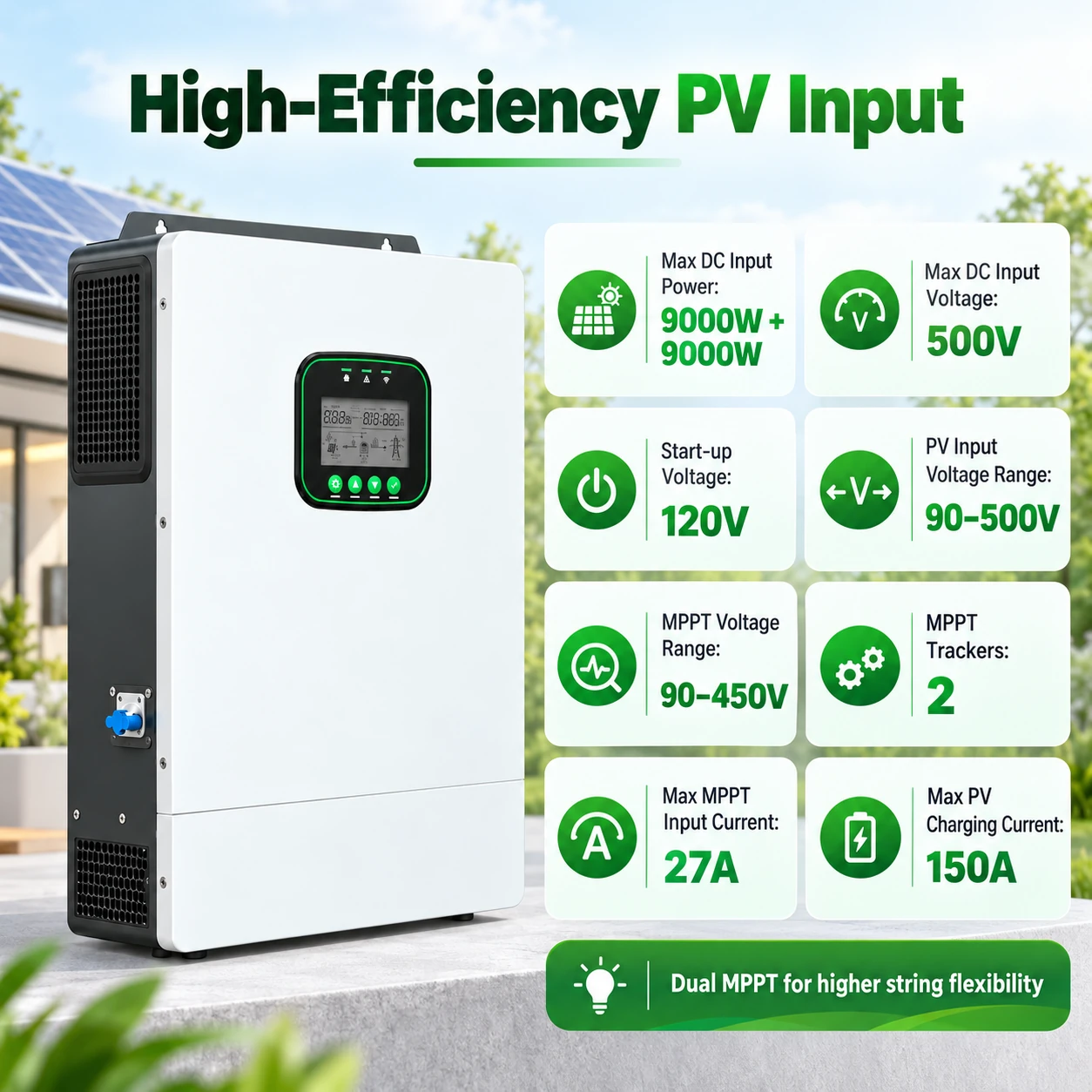

Input	PV: 9,000 W + 9,000 W max DC, 90–500 V, dual MPPT 27 A each. AC: 170–280 V AC, 47–55 / 57–65 Hz, 60 Aac max

Output

Rated output	12,000 W / 12,000 VA rated; 24,000 VA peak for 5 s
Output	230 V AC, 50/60 Hz, power factor 1, L+N+PE; off-grid / grid-connected / batteryless operation
Efficiency	Max efficiency (battery to load) >94.5%

Protection

Protections	Mains overload (63 A circuit breaker), AC reverse feed, battery short circuit (fuse), AC output short circuit, wiring protection; 10 ms typical transfer time

Environmental

Operating conditions	−10 to 55 °C (>45 °C derating), 5–95% humidity, up to 4,000 m (no derating below 2,000 m), IP21, ≤60 dB, forced air cooling

Physical

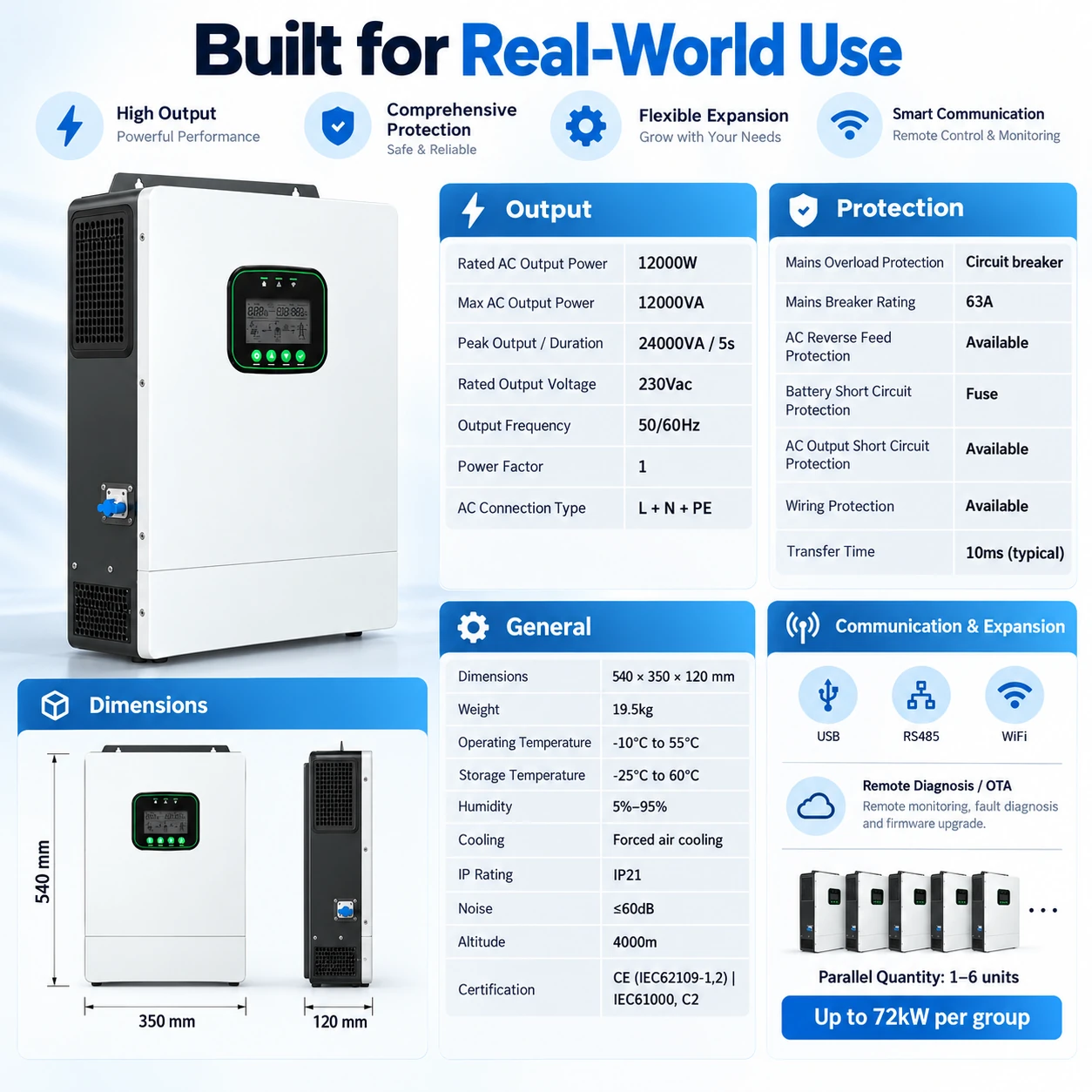

Housing dimensions	540 × 350 × 120 mm (L × W × H)
Net weight	19.5 kg
Plug / connector types	L+N+PE AC connection; PV and battery terminals; USB / RS485 / WiFi communication
Dimensions / weight	540 × 350 × 120 mm; 19.5 kg; IP21; ≤60 dB; forced air cooling (variable speed)

CE (IEC62109-1, -2); IEC61000, C2
