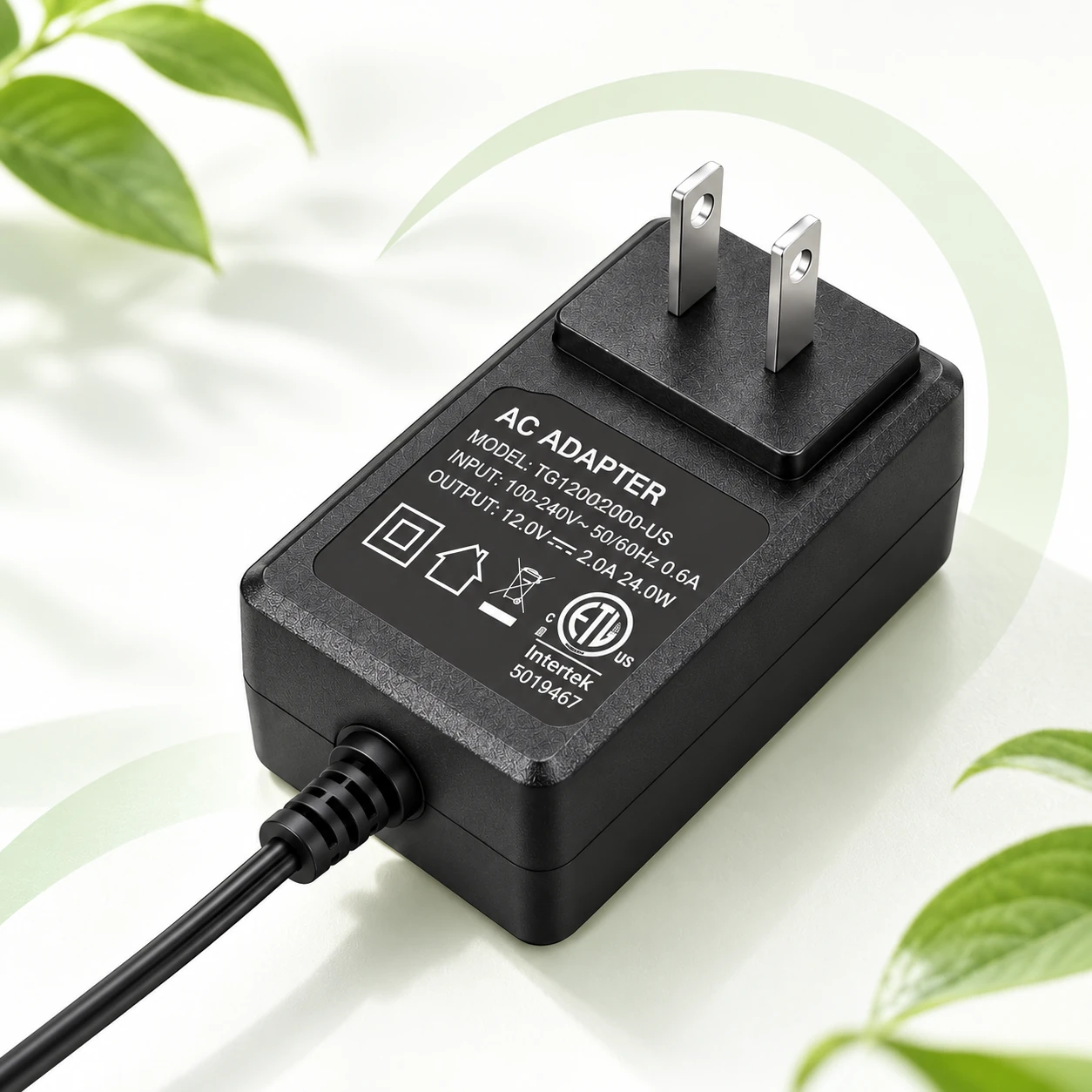

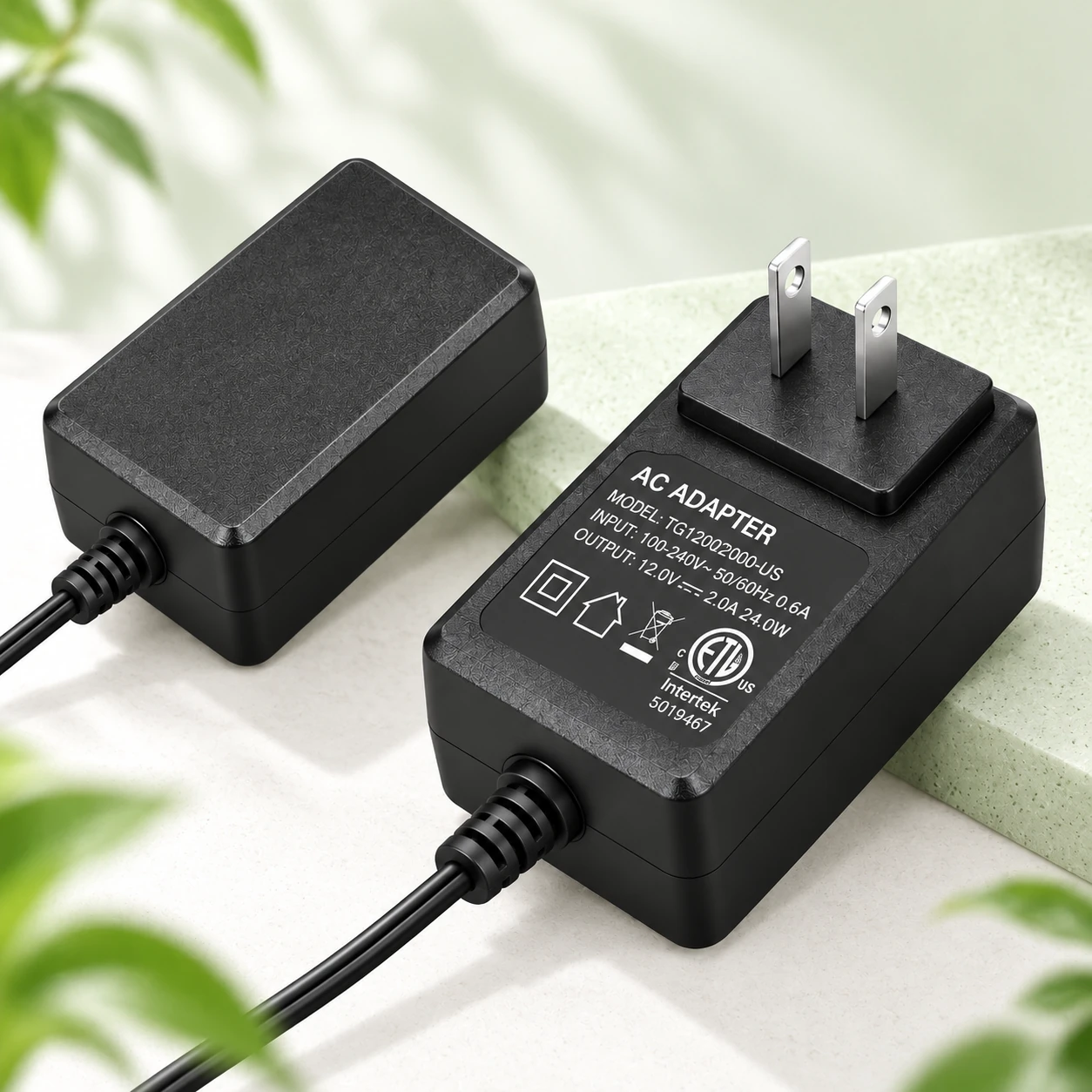

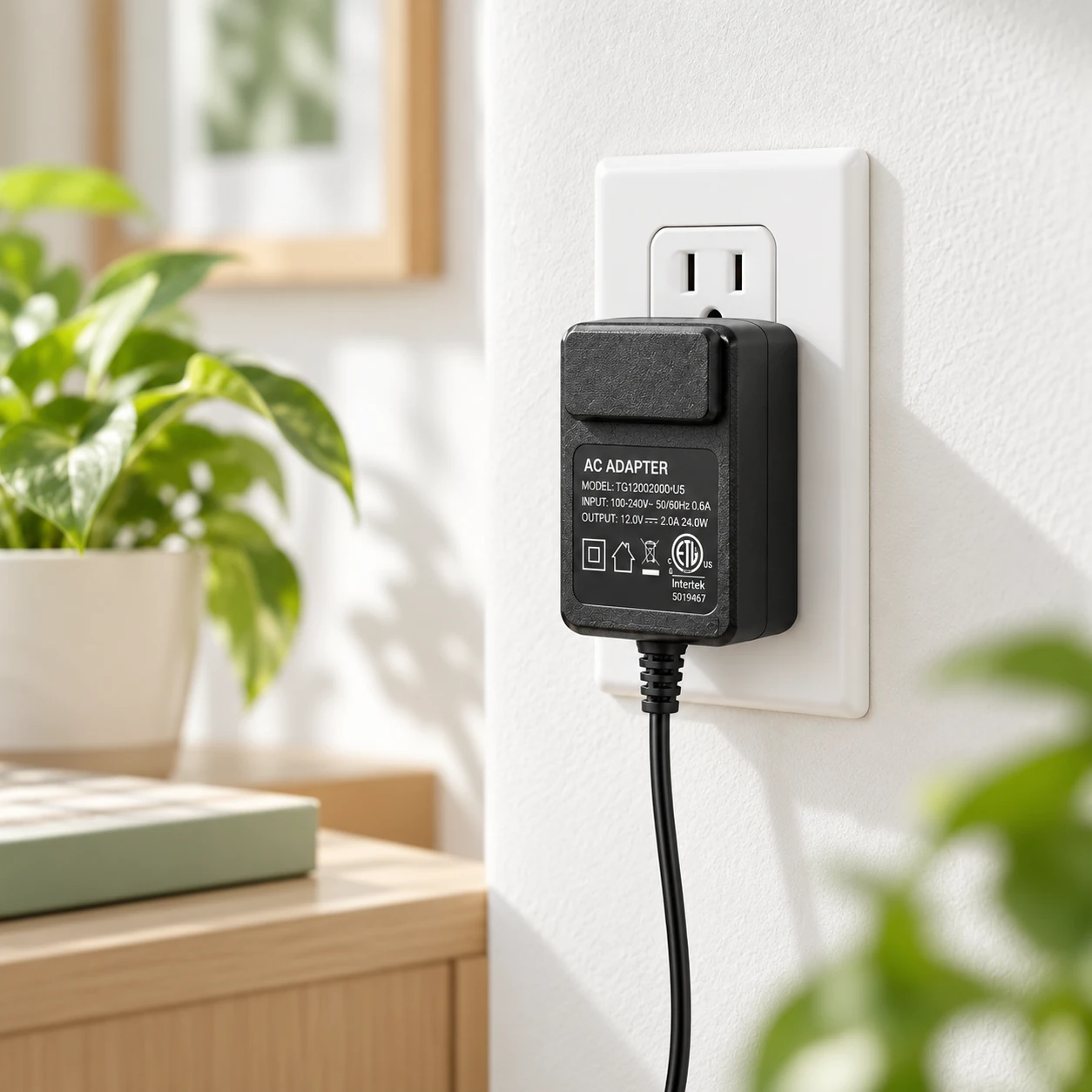

Name: 24W Wall-Mount Power Adapter, US Plug
Brand: TGITION
SKU: TG12002000-US

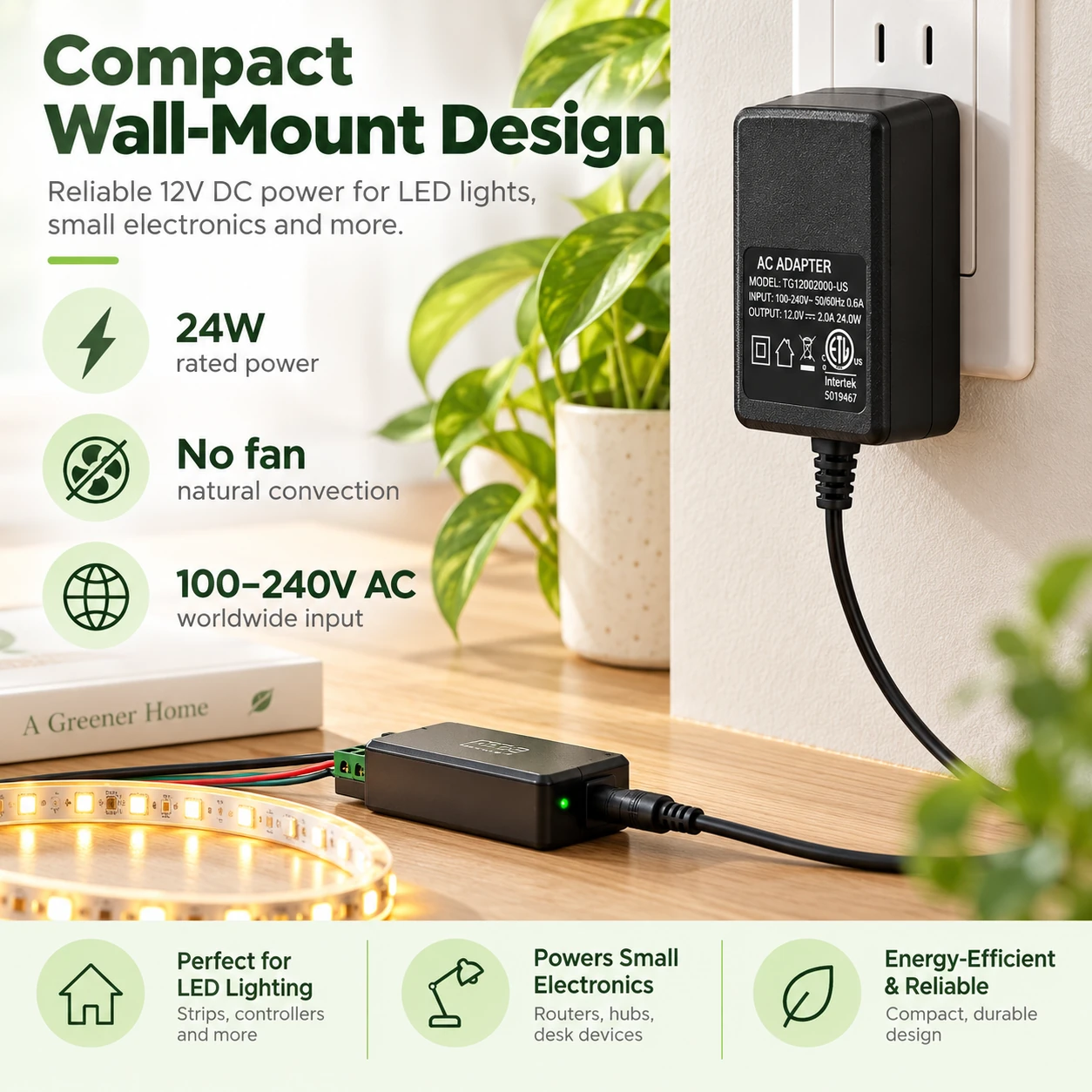

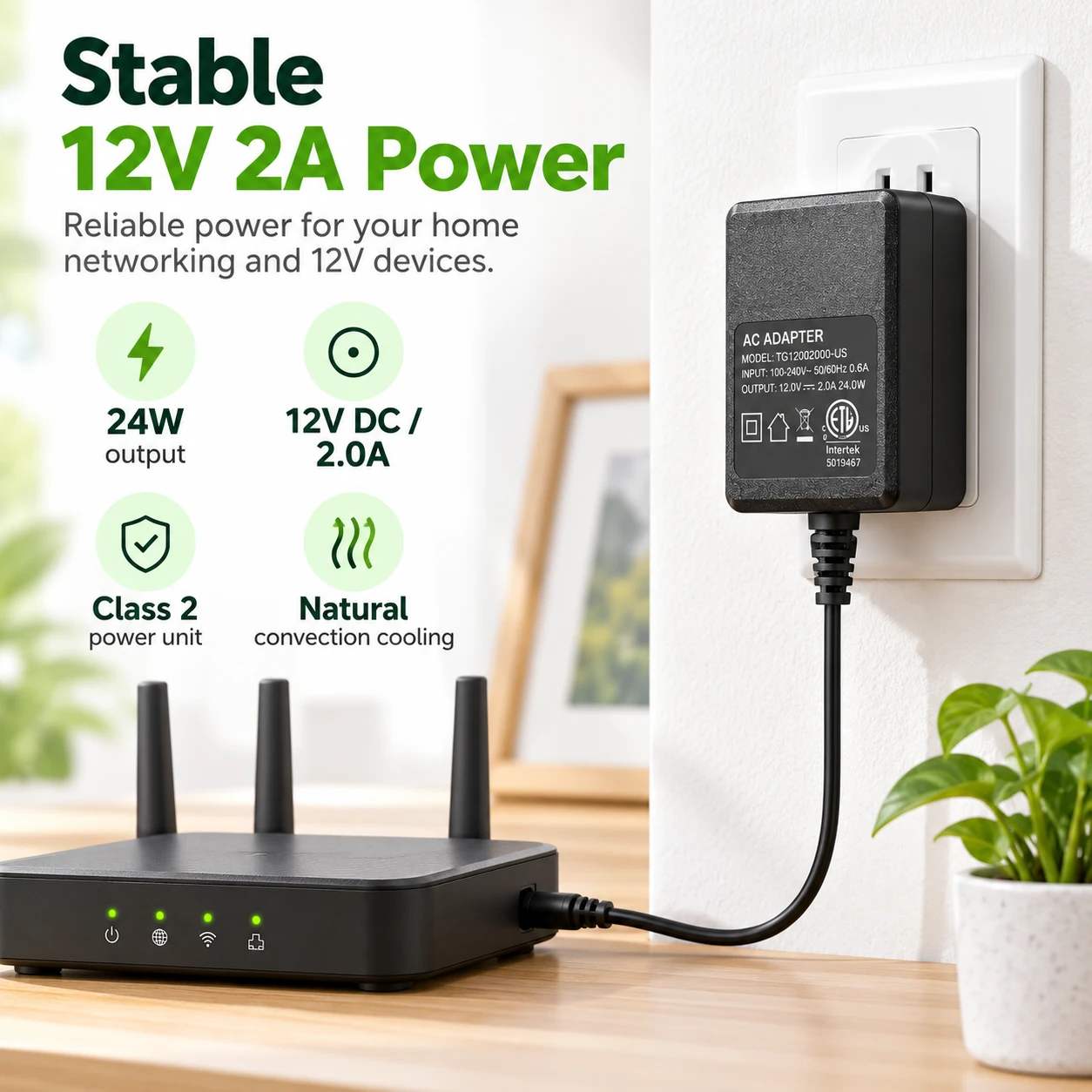

A 24 W wall-mount AC/DC power supply rated as a Class 2 power unit, built around a fixed 12 V DC 2.0 A output. Intended for equipment that needs one stable low-voltage rail in the North American market, where the unit is referenced to ETL1310 and FCC Part 15.

Wide-range 100–240 V AC input with a 90–264 V AC operating window
No-load input power below 0.1 W at 115 V
Average active efficiency above 86.204% at 115 V AC / 60 Hz
Natural convection cooling with no fan to wear out

General

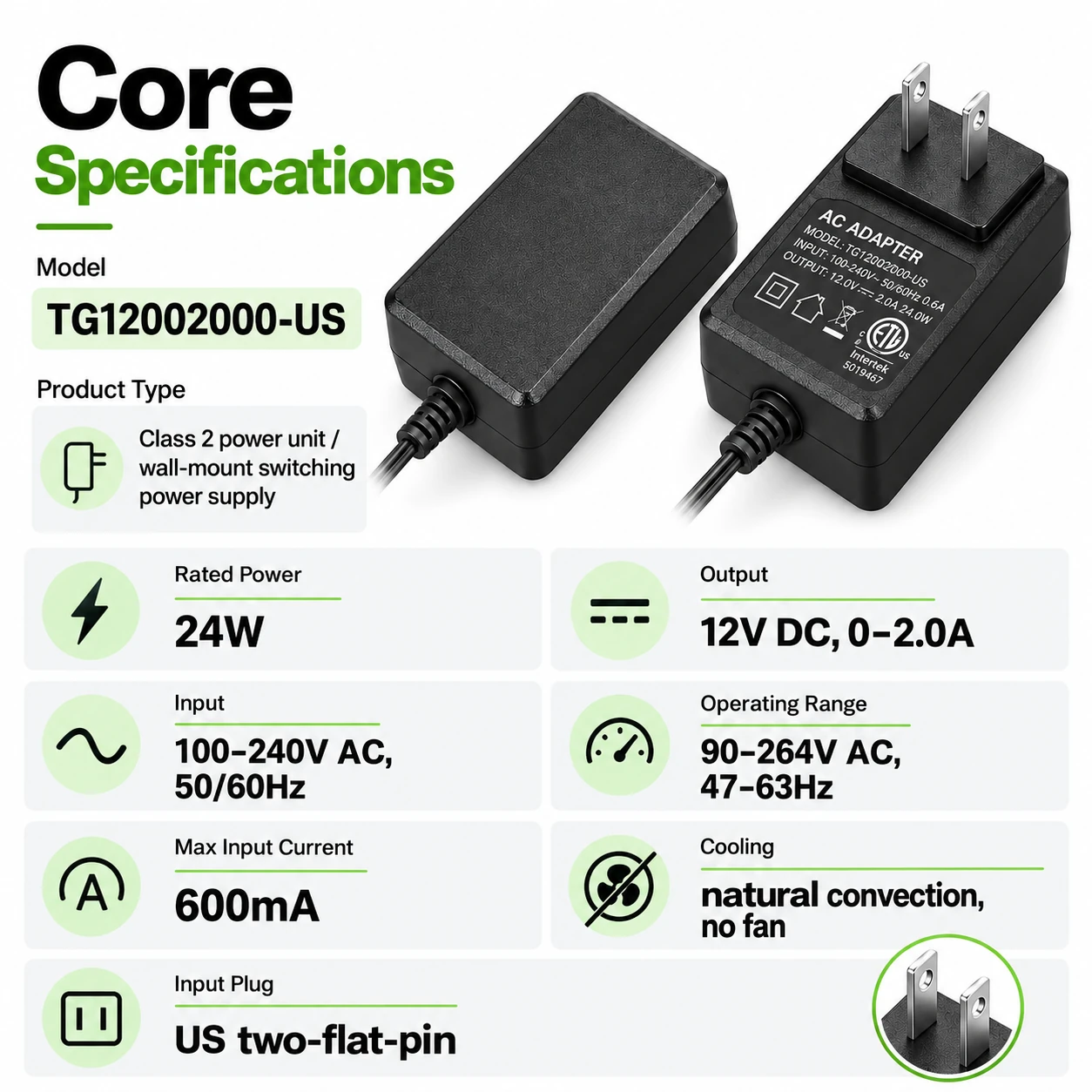

Product type	Class 2 power unit / wall-mount switching power supply

Input

Input	100–240 V AC, 50/60 Hz; operating range 90–264 V AC, 47–63 Hz; 600 mA max.

Output

Rated output	24 W (12 V DC × 2.0 A)

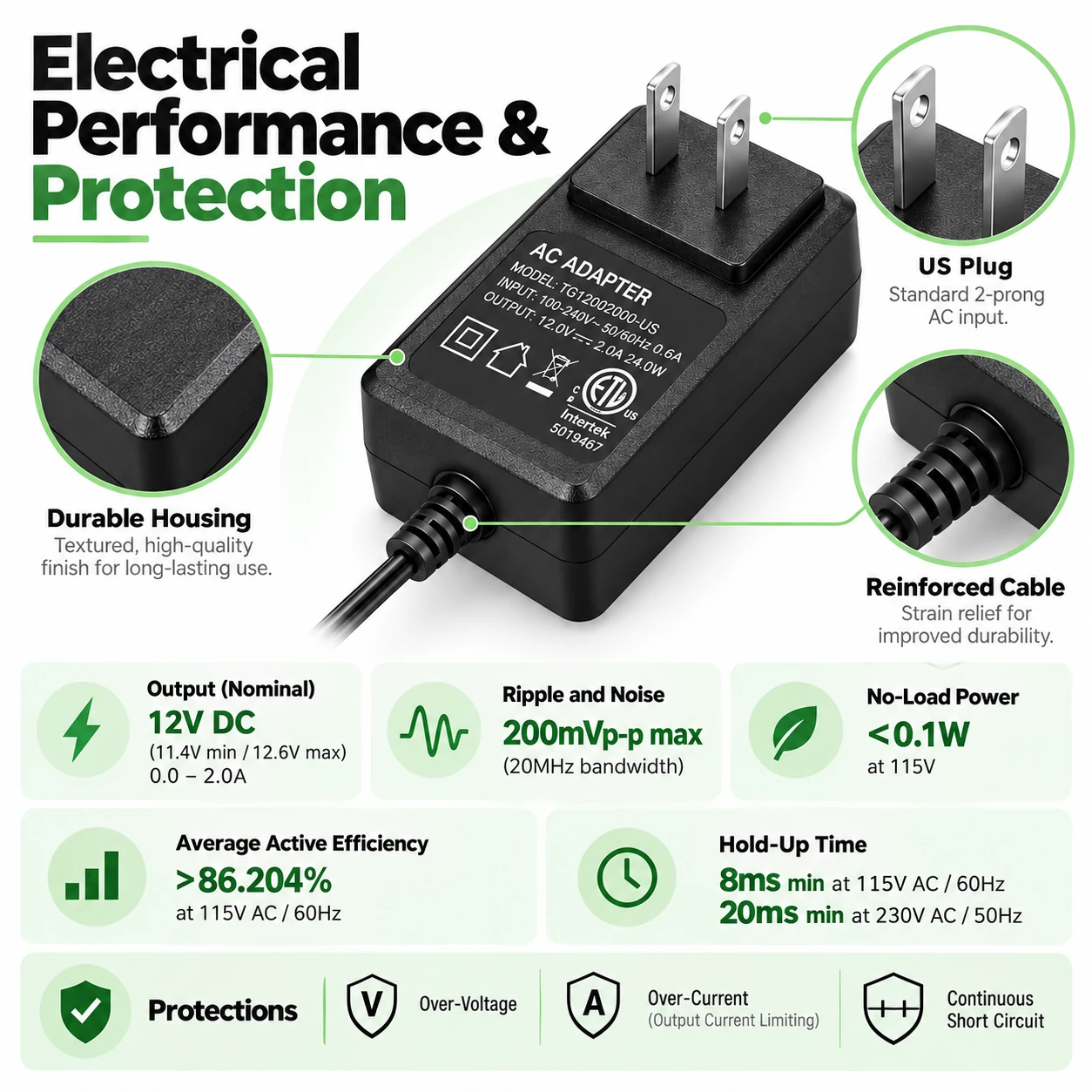

Output	12 V DC nominal (11.4 V min / 12.6 V max), 0.0–2.0 A
Ripple & noise	200 mVp-p maximum, 20 MHz bandwidth
No-load input power	<0.1 W at 115 V
Hold-up time	8 ms minimum at 115 V AC / 60 Hz; 20 ms minimum at 230 V AC / 50 Hz
Efficiency	Average active efficiency >86.204% at 115 V AC / 60 Hz

Protection

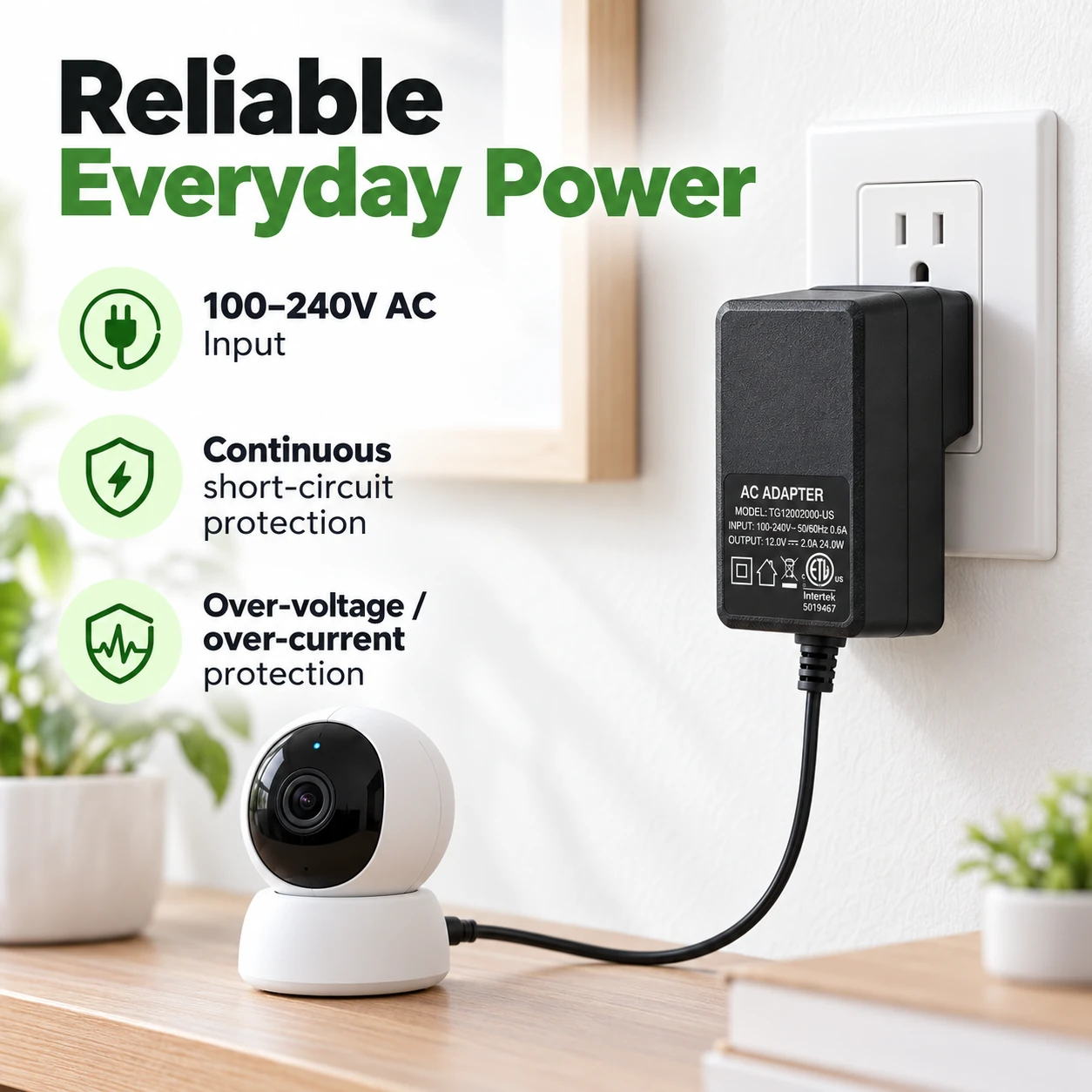

Protections	Over-voltage, over-current (output current limiting), continuous short-circuit

Environmental

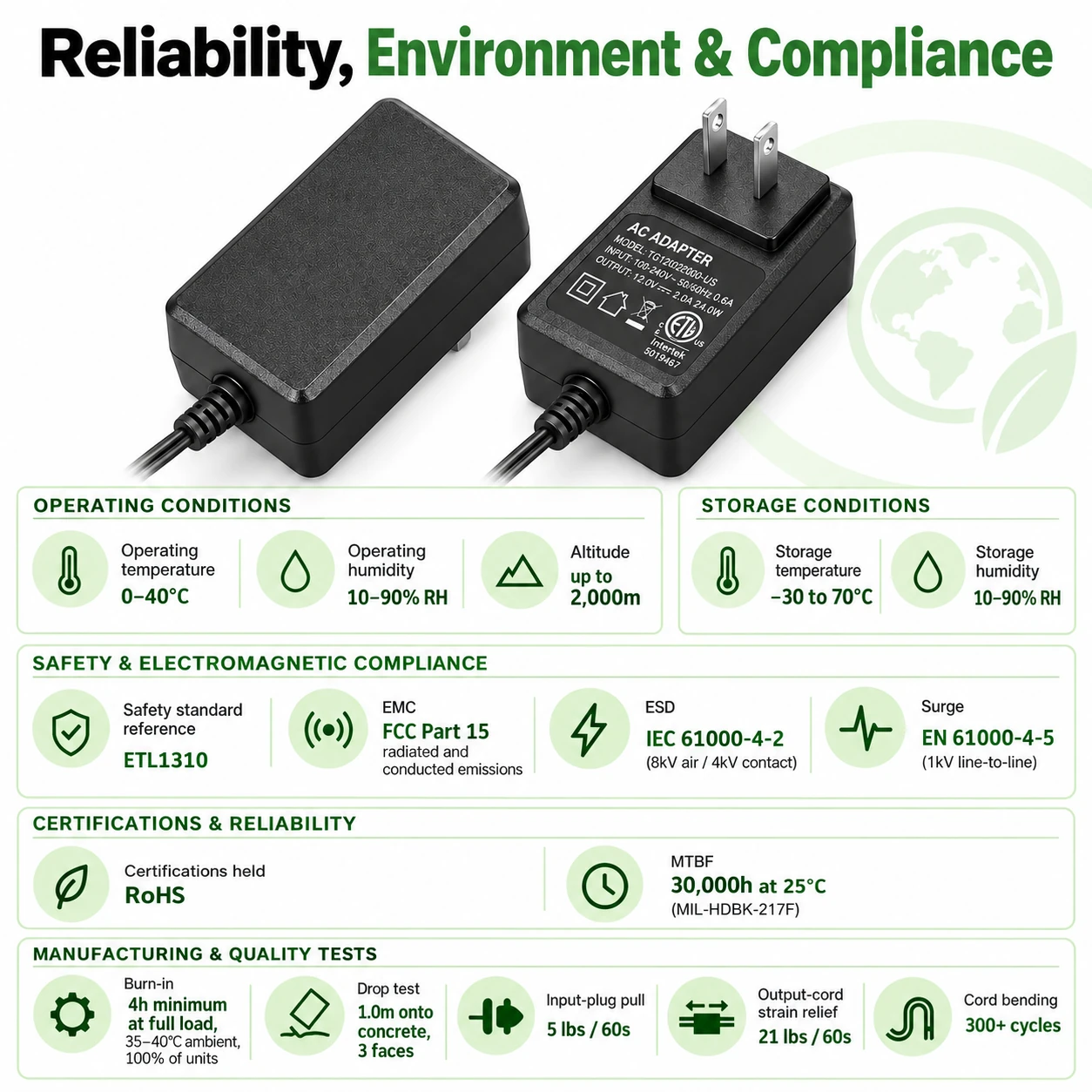

Operating conditions	0–40 °C, 10–90% RH, up to 2,000 m; natural convection cooling
Storage conditions	−30 to 70 °C; 10–90% RH
Cooling	Natural convection

Physical

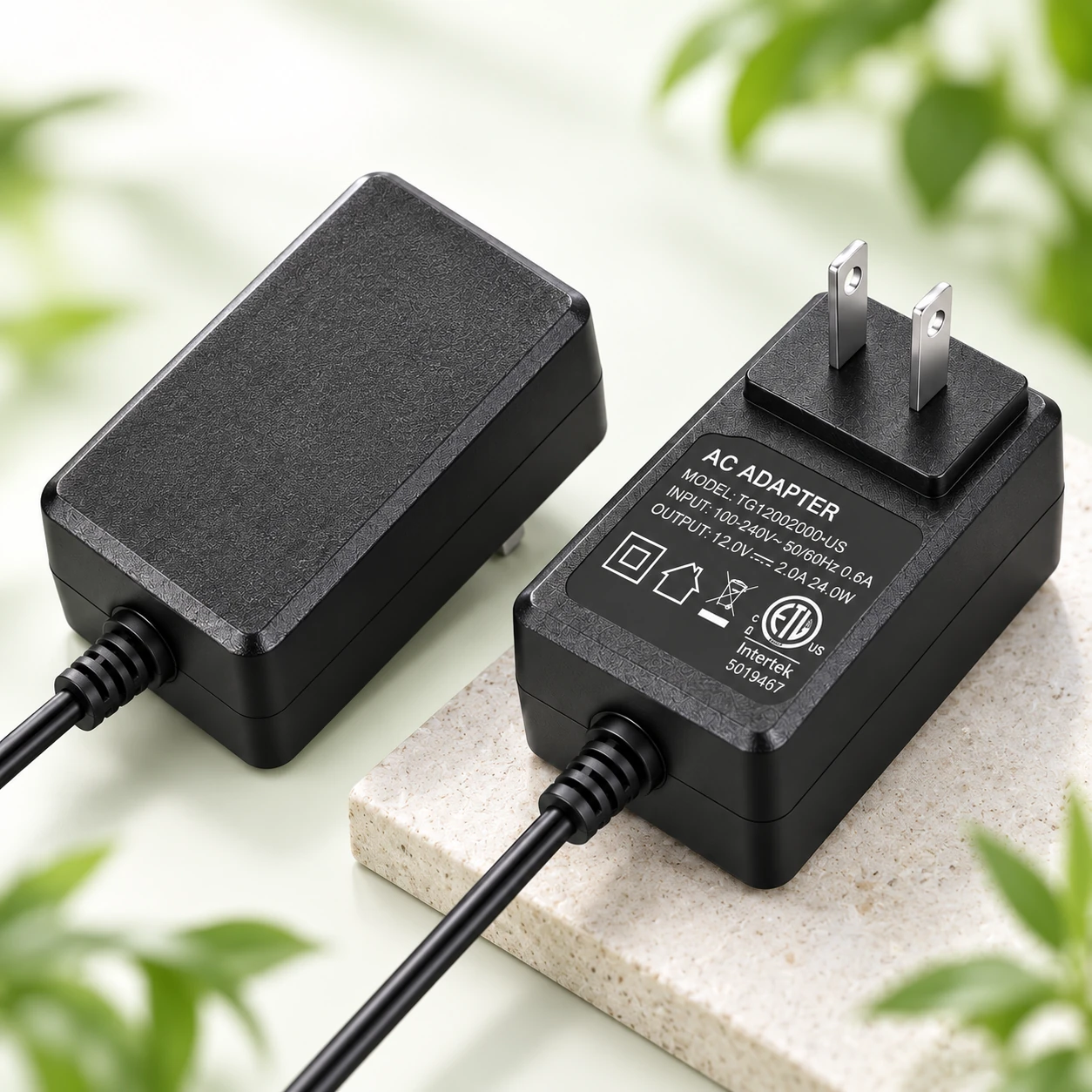

Plug / connector types	Two-flat-pin US plug; DC output cable with barrel connector

Test	Condition	Result / scope
Burn-in	burn-in of at least four hours at full load in a 35–40 °C ambient	100% of units
Drop	1.0 m drop onto concrete across three faces	Sampling
Plug pull	5 lb input-plug pull	Sampling
Cord strain relief	21 lb output-cord strain-relief pull	Sampling
Cord bending	cord bending of 300 cycles or more	Sampling
MTBF	30,000 hours at 25 °C (MIL-HDBK-217F)

Safety standard reference ETL1310; FCC Part 15 radiated and conducted emissions; IEC 61000-4-2 ESD (8 kV air / 4 kV contact); EN 61000-4-5 surge (1 kV line-to-line)
