Name: 15V 1A Linear AC/DC Power Adapter, EU Plug
Brand: TGITION
SKU: TG15001000-EU

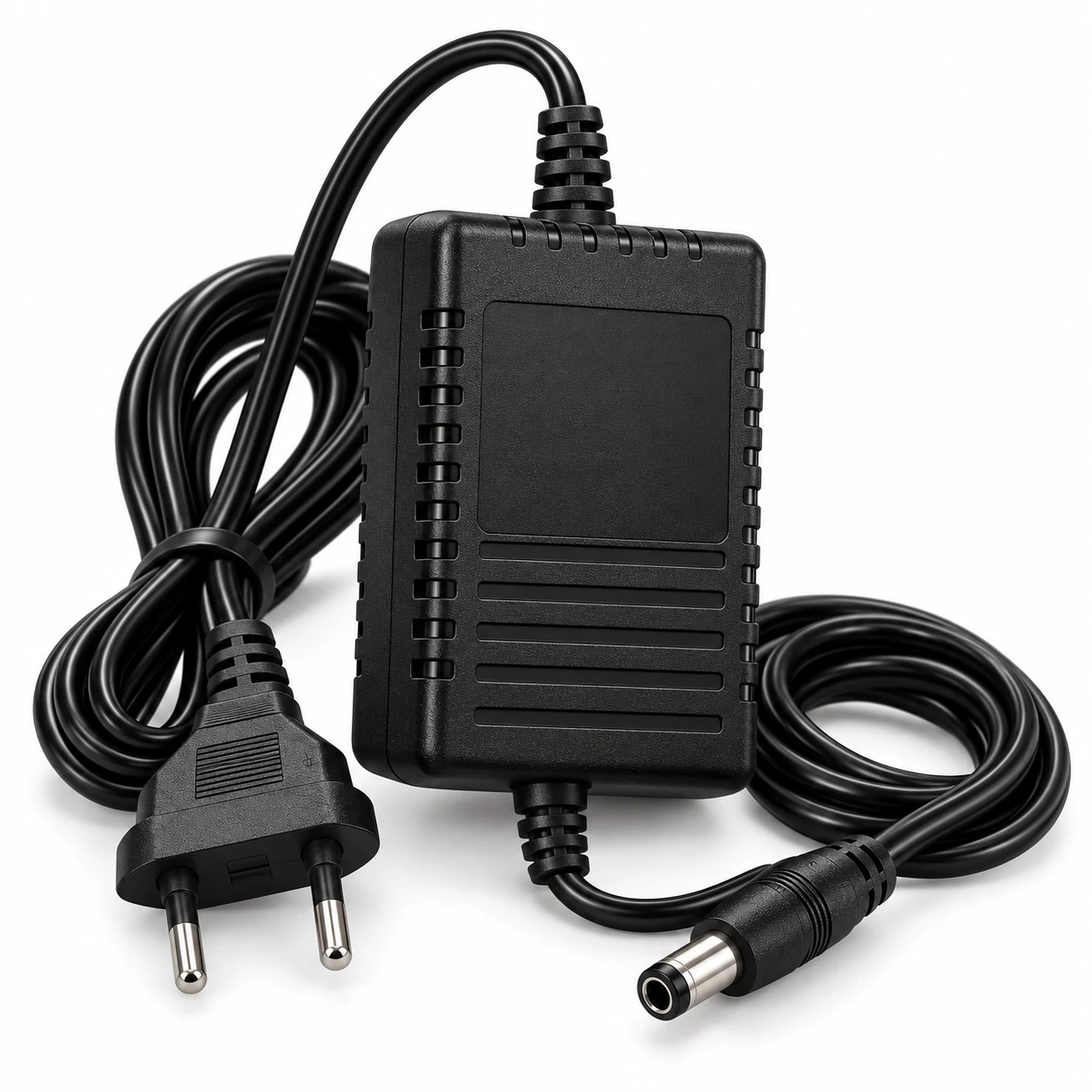

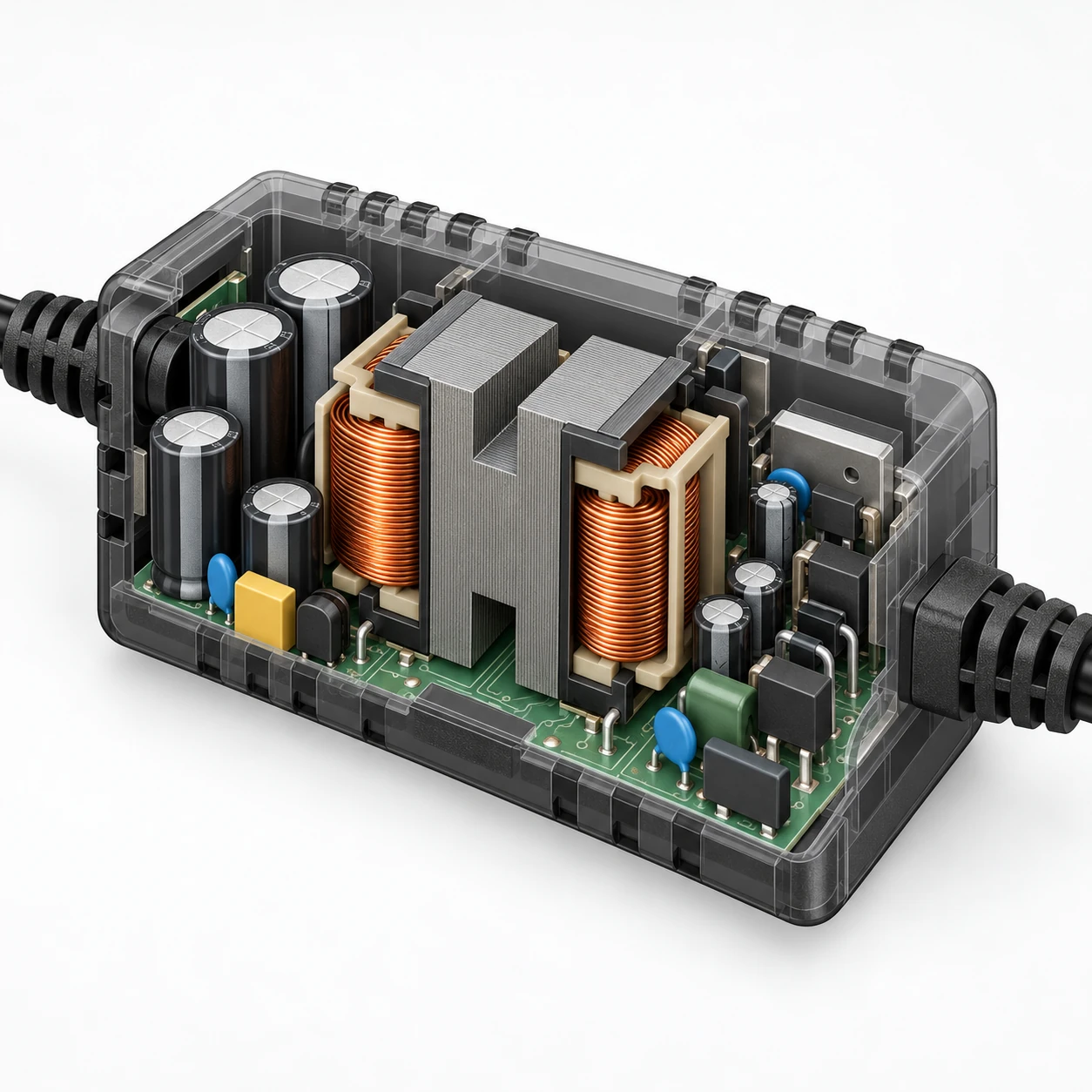

A 15 V DC 1 A linear AC/DC adapter built around an EI-57 × 30 mm H-core transformer rather than a switching stage. The 230 V AC 50 Hz input is wired, with a European two-pin round plug on a one-metre cord, and the output ends in a centre-positive 5.5 × 2.1 × 12 mm barrel plug.

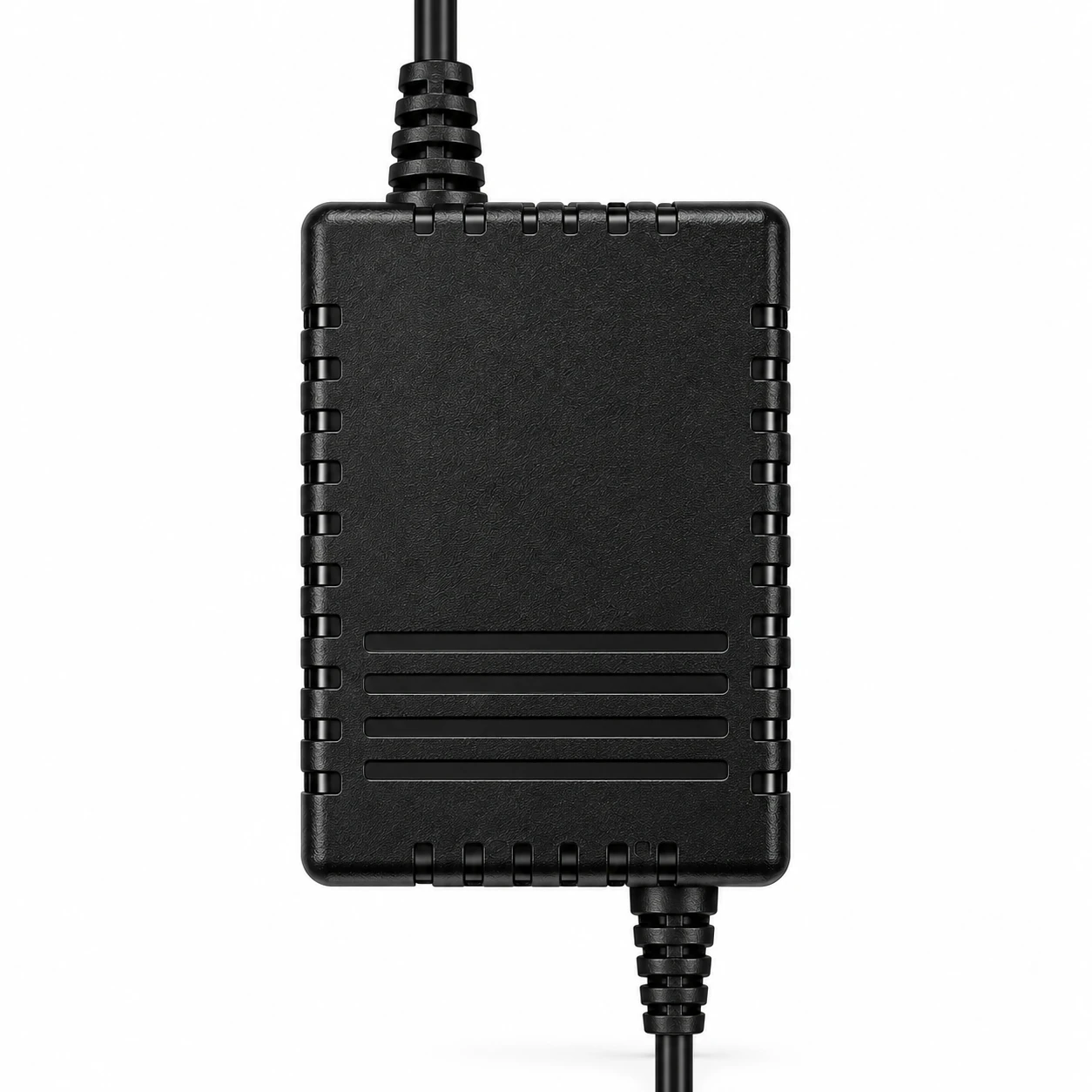

The insulation is specified in the datasheet: 3750 V AC dielectric strength for one minute, and 100 MΩ insulation resistance measured primary to secondary, primary to core and secondary to core. A 130 °C thermal fuse sits in the primary, and the housing is a rectangular black enclosure with ribbed sides and strain relief.

Linear transformer adapter — EI-57 × 30 mm H-core, no switching stage
Rated 15 V DC at 1.0 A, centre-positive 5.5 × 2.1 × 12 mm barrel plug
3750 V AC dielectric strength for one minute, 100 MΩ insulation resistance
230 V AC 50 Hz input, wired two-pin EU plug on a 1.0 m cord

General

Product type	Linear AC/DC power adapter (transformer-based)

Input

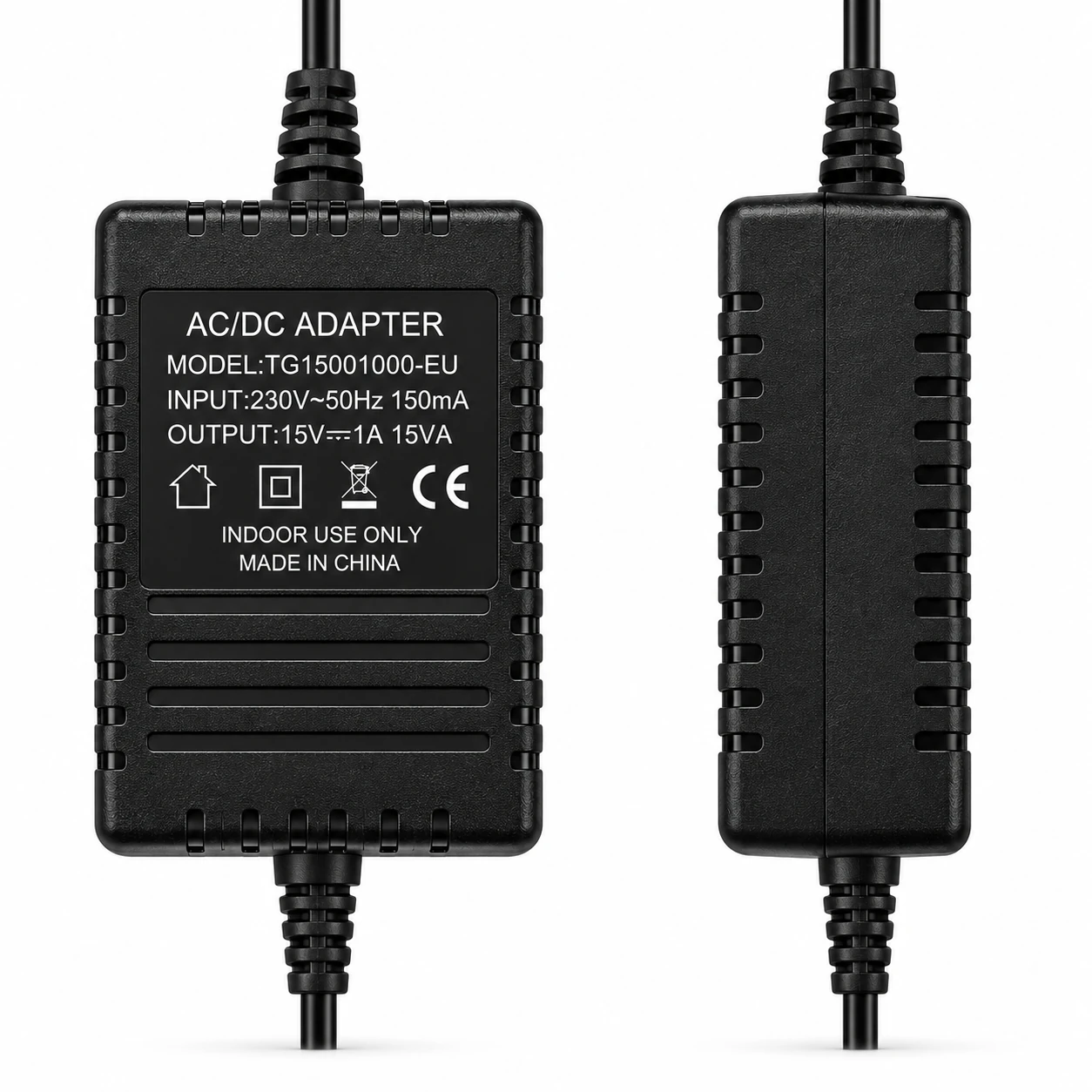

Input	230 V AC, 50 Hz; 150 mA input current; primary exciting current 65 mA maximum, open circuit

Output

Rated output	15 W output (15 V DC × 1.0 A); rated 15 VA maximum
Output	15 V DC ±5% at full load, 1.0 A; secondary open-circuit voltage 15.4 V DC
Output voltage	15 V DC ±5% at full load; 15.4 V DC open circuit
Output current	1.0 A

Protection

Protections	Primary thermal fuse, 130 °C / 250 V / 2 A

Physical

Housing dimensions	98.5 ±1 × 67.0 ±1 × 56.5 ±1 mm (H × W × D)

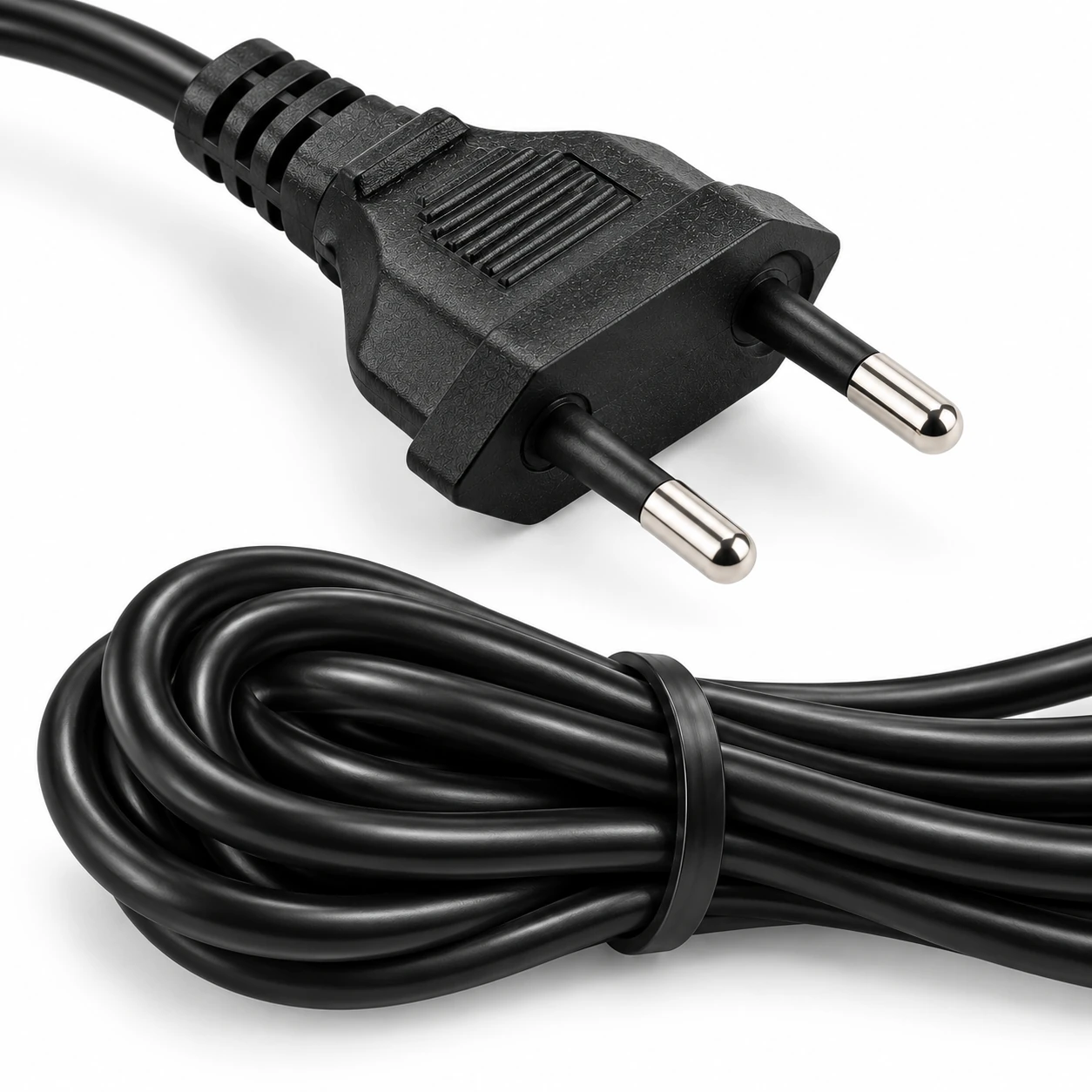

Plug / connector types	Wired European two-pin round AC plug on a 2 × 0.75 mm² black cord, 1000 ±100 mm

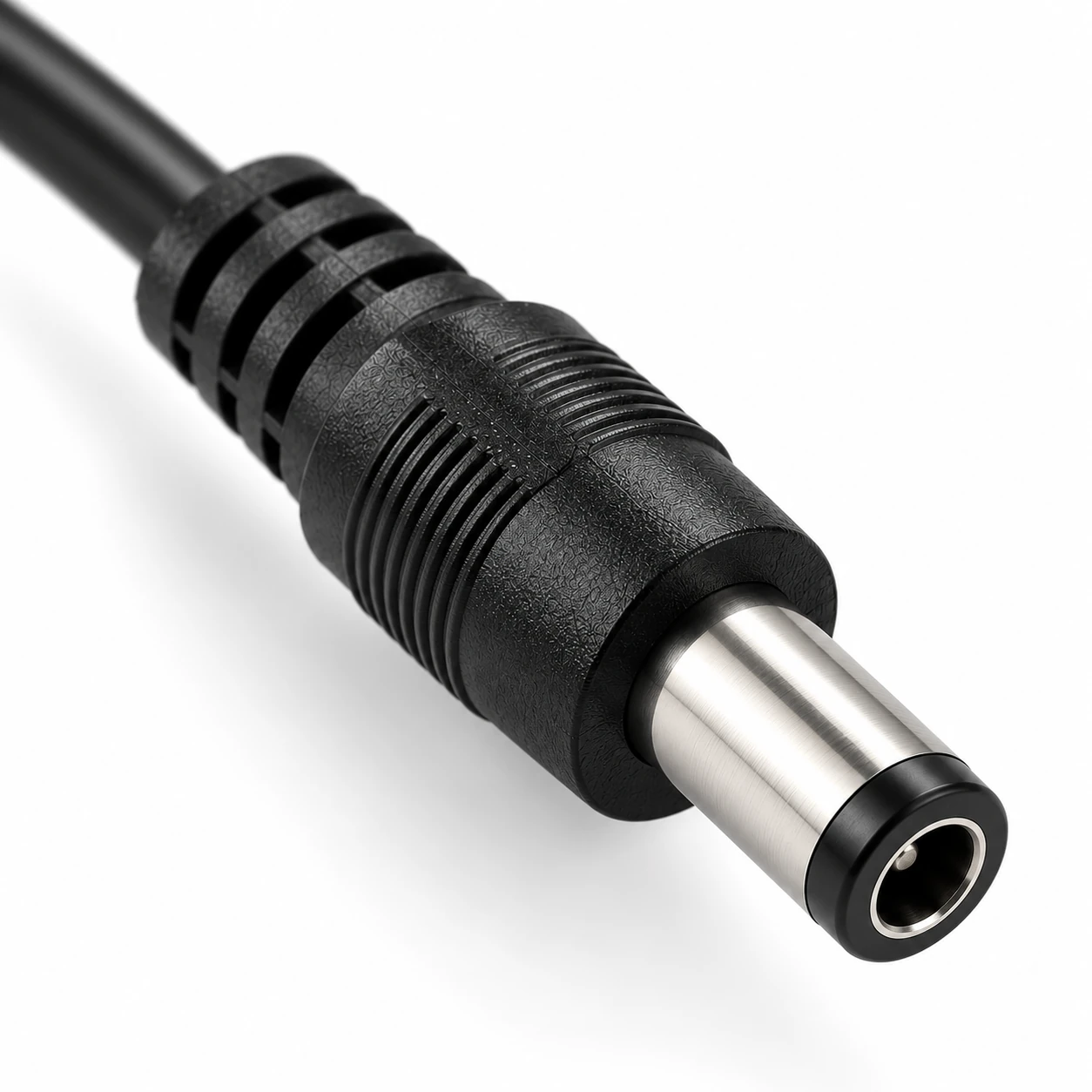

DC connector	5.5 mm OD × 2.1 mm ID × 12 mm barrel plug
Output cable	DC output: black UL2468 AWG20, 1830 ±100 mm
Polarity	Centre positive

Insulation resistance 100 MΩ at 500 V DC (primary/secondary, primary/core, secondary/core); dielectric strength 3750 V AC, 2 mA, 1 minute; winding and iron-core temperature rise 75 °C maximum by the resistance method
